GPIO BOX (K5000)
Compliant to JunWei’s B5204 & R84L, as well as Impinj’s R220 & R420
Accept external Power Adapter (24VDC), or quote the Power Adapter which comes with individual Reader
An Individual connector of Power and Ground may correspond to each Input & Output connector
May provide 2 sets of output power with 200mA/24V
Apply applications of Low-Power output (includes Relay) by standard 5VDC output power from various Readers
The Relay can link to External Power source of 240VAC/10A
Each LED indicator corresponds to each Input or Output connector for clear identification

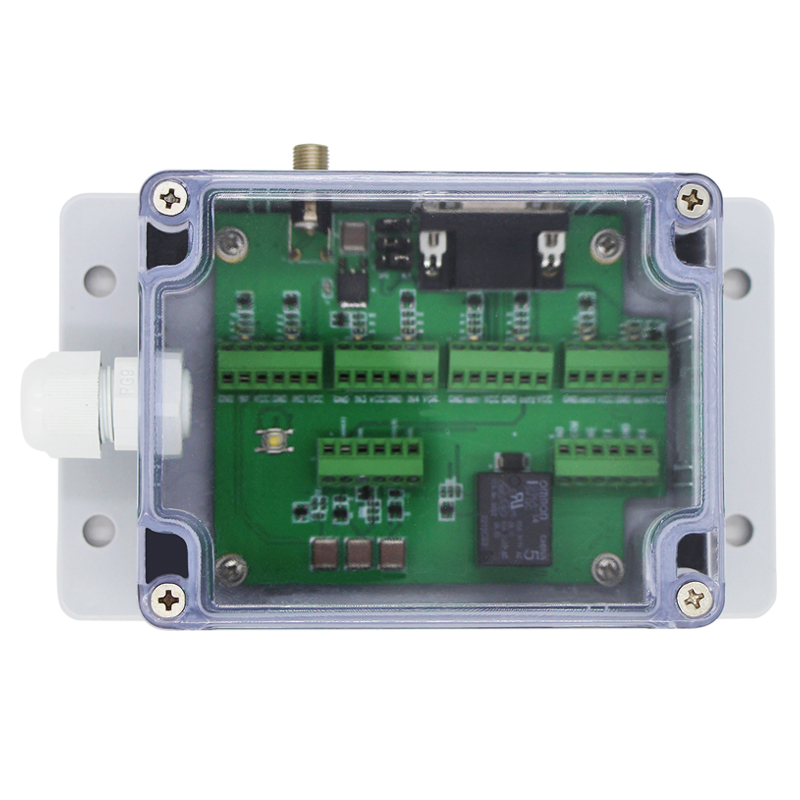

GPIO Control x8, Relay x1 & Power Control x2
-
PARAMETERS
-
PIN ASSIGNMENT OF D-SUB 15 CONNCETOR
| Pin Number | Definition | Pin Number | Definition |
|---|---|---|---|
| #1 | 5V | #9 | GPO 2 |
| #2 | NC | #10 | GPO 3 |
| #3 | NC | #11 | GPO 4 |
| #4 | RST | #12 | GPI 1 |
| #5 | V+ | #13 | GPI 2 |
| #6 | V- | #14 | GPI 3 |
| #7 | GND | #15 | GPI 4 |
| #8 | GPO 1 | #16 |
Power Adapter (24VDC/1.5A)
ELECTRICAL PARAMETERS
-
| With 5V Power source of Reader | With External 24VDC Power source | |
|---|---|---|
| Driver 1 | DC 5V，200mA Max | DC 24V，200mA Max |
| Driver 2 | DC 5V，200mA Max | DC 24V，200mA Max |
| Relay | AC 220 10A | AC 220 10A |
| GPIO High | 3V~3.3V | 3V~24V |
| GPIO Low | 0~2.5V | 0~2.5V |

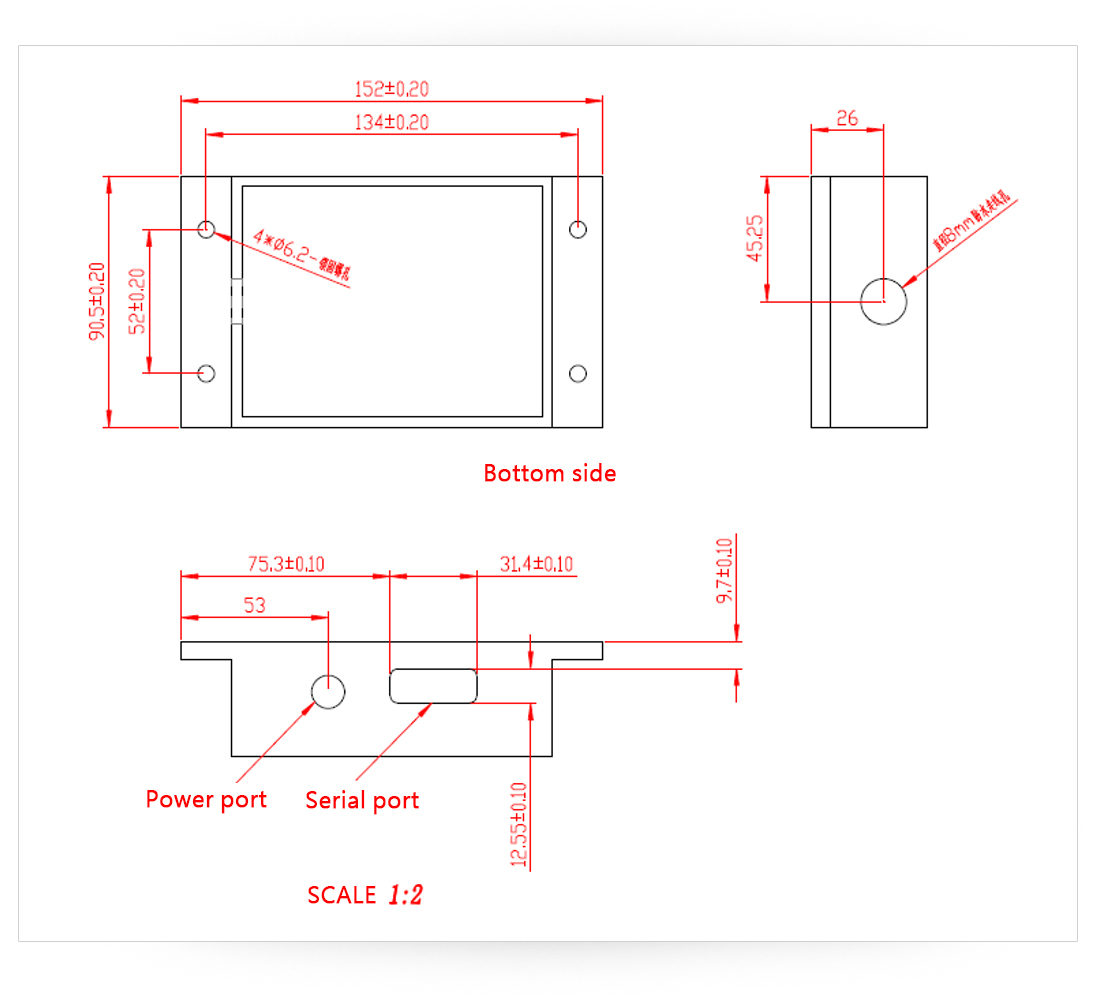

DIMENSION
-
