● General Information
RF Protocol |
EPC Class 1 Gen 2; ISO18000-6C |
Operating Frequency |
UHF 902-928 MHz (US); 866-868 MHz (EU) |
Chip Type |
Alien Higgs-3 |
Memory |
96-EPC bits; 512-bit user memory |
Feature |
Read / write (user programmed) |
Programming |
100,000 cycles |
Data Storage |
10 years |
Read Speed |
300tags/second ( EPC 96bits number) |
Tag Warranty |
1 year |
● Test Information
Electromagnetism |
Compliant with the IEC 61000-4-2 standards |
Salt Spray Resistance |
compliant with the IEC 60068-2-11 standards |
Drop Protection |
compliant with the 60068-2-31 standards |
Vibration Resistance |
compliant with the 60068-2-6 standards |
● Feature/Electric parameter
Reading distance by AT870 UHF RFID PDA |
Up to 3 meters (1W/30Dbi) |
Polarization |
Linear |
Test method |
100% Tested |

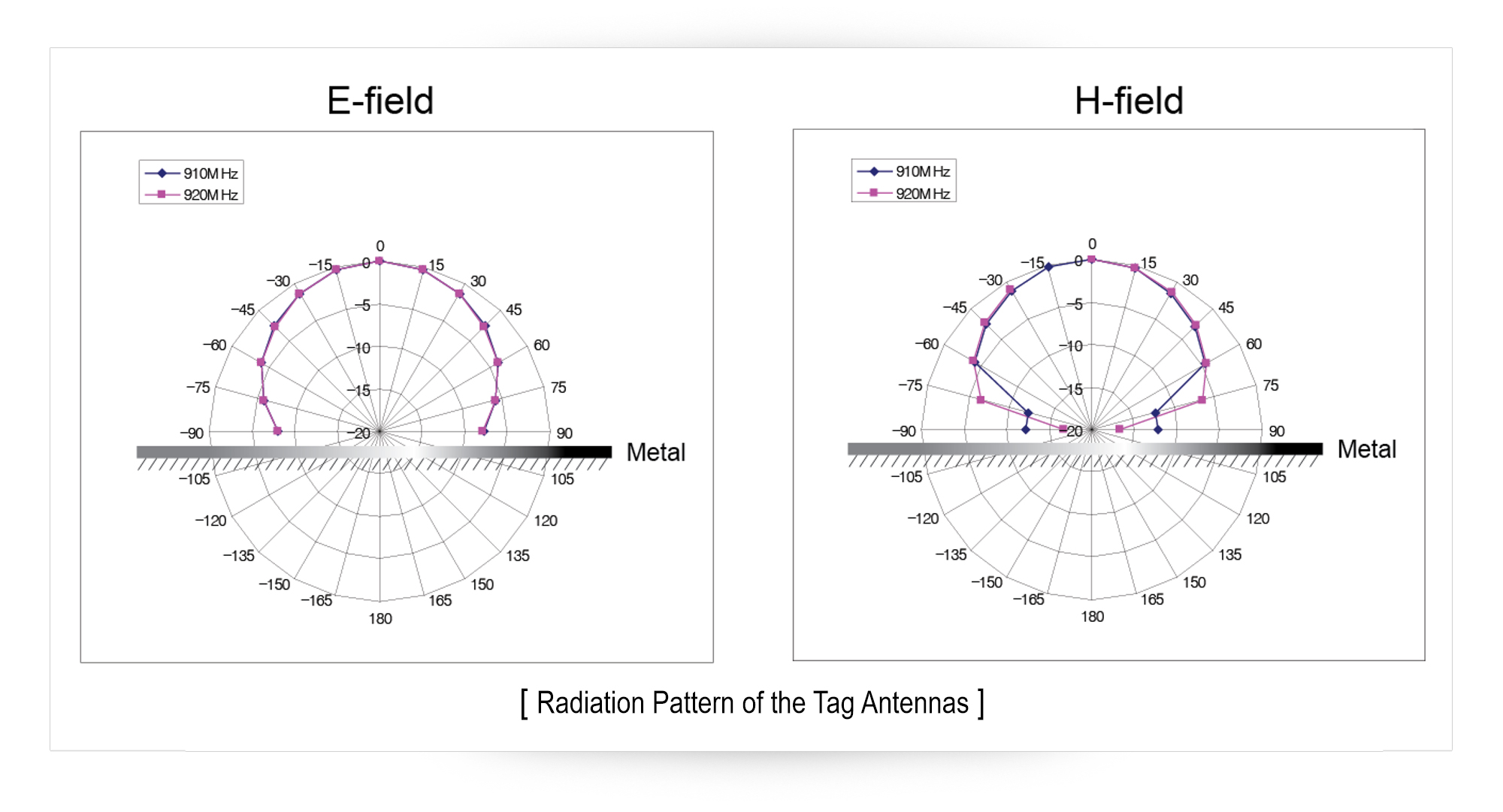

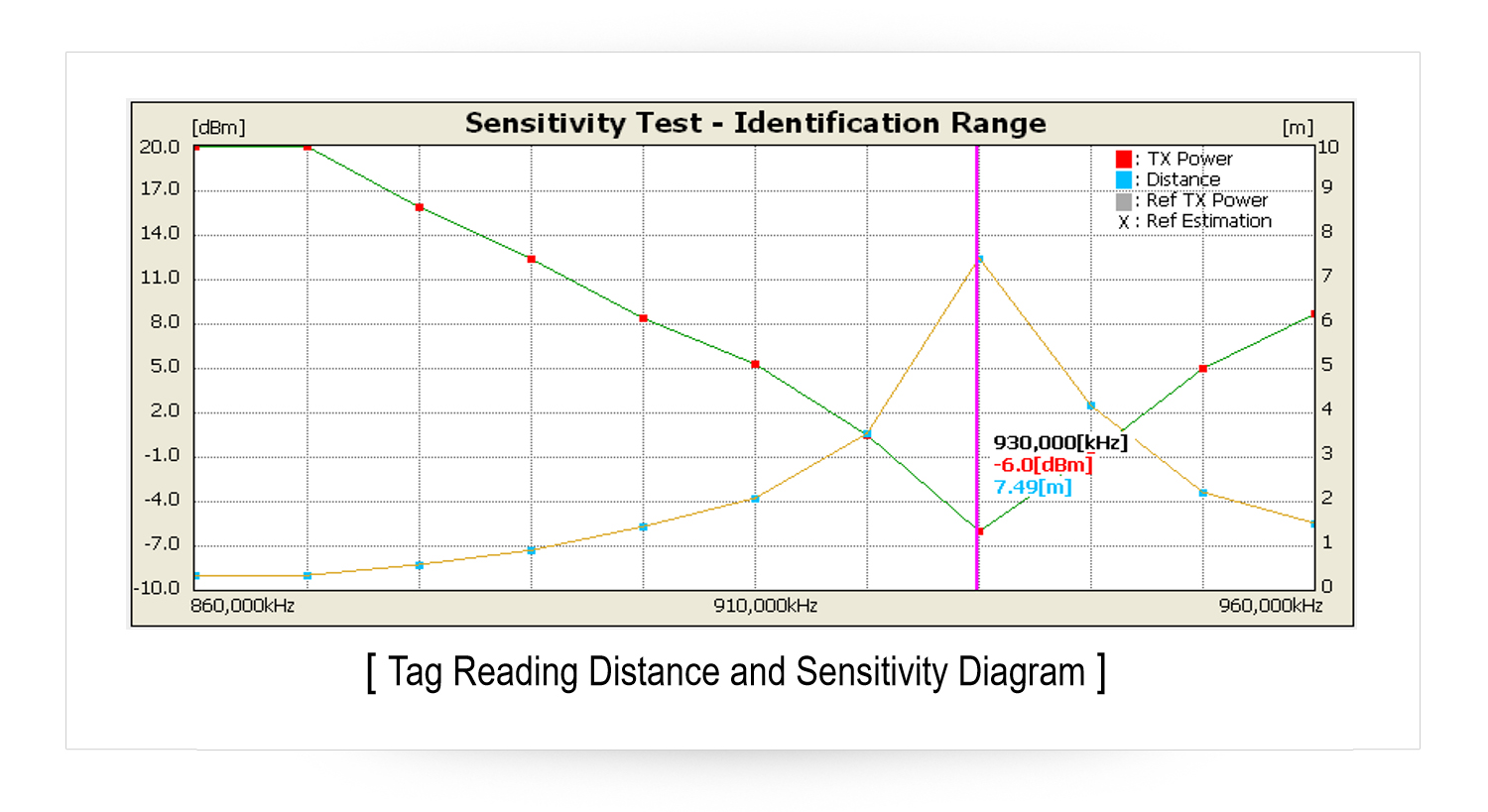

● Electric Performance Validation
1) Test Environment : Microwave Lab
2) Frequency Setting : 860MHz~960MHz
3) Output Power: 30dBm
4.) Antenna Gain : 6dBi
5.) Antenna Polarization: LP
|
● Electromagnetism Validation
1.) Follow IEC 61000-4-2 Standard
2.) Contact Discharge : ± 4KV
3.) Air Discharge : ±8KV
4.) At least 10 single discharge shall be applied for VCP (Vertical Coupling Plane) and HCP (Horizontal Coupling Plane)
5.) After 10 times Recharged, Tag shall be operated normally
|

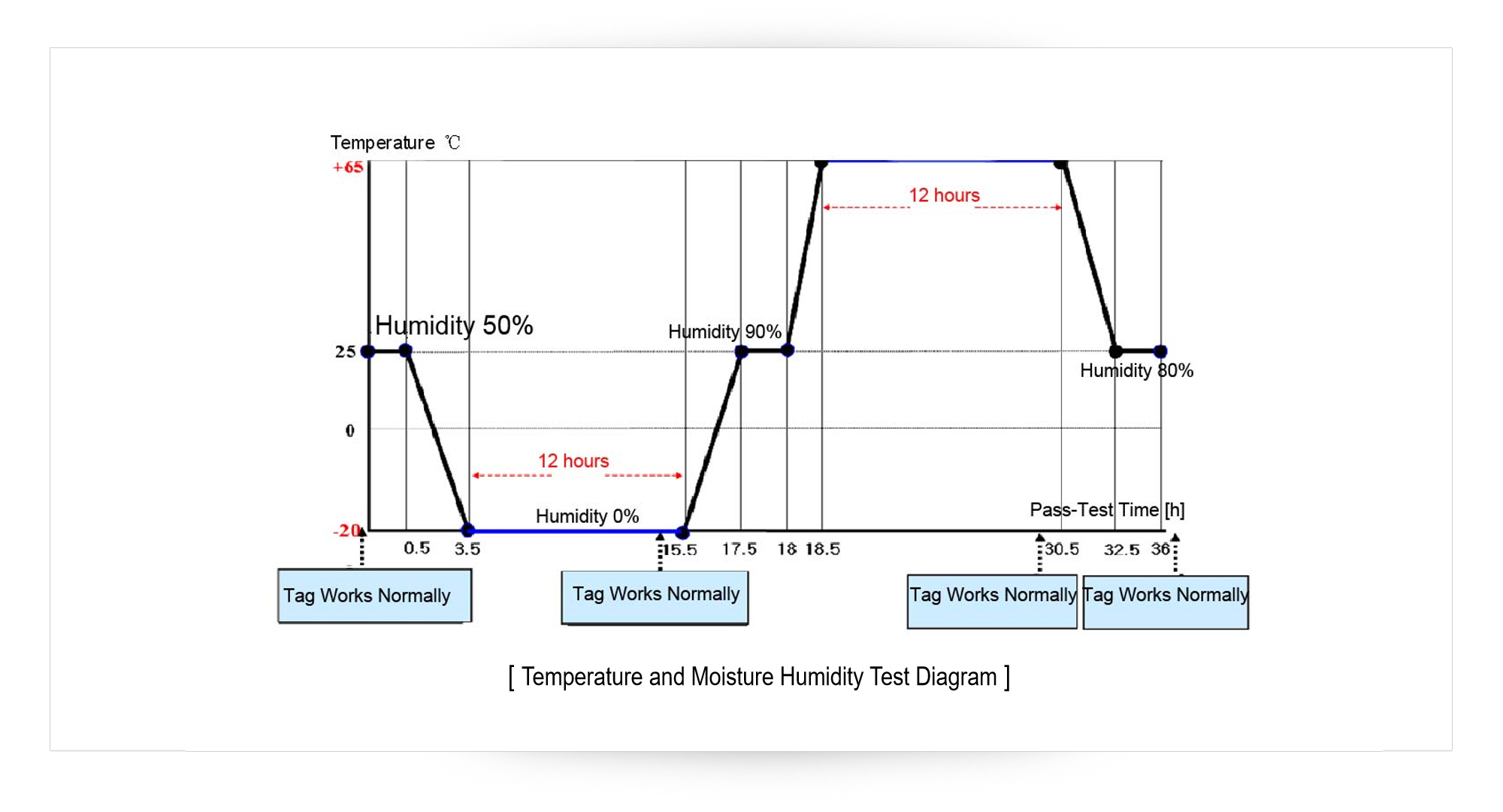

● Temperature & Moisture Humidity Validation (Complied with IEC 60068, JESD22 standard)

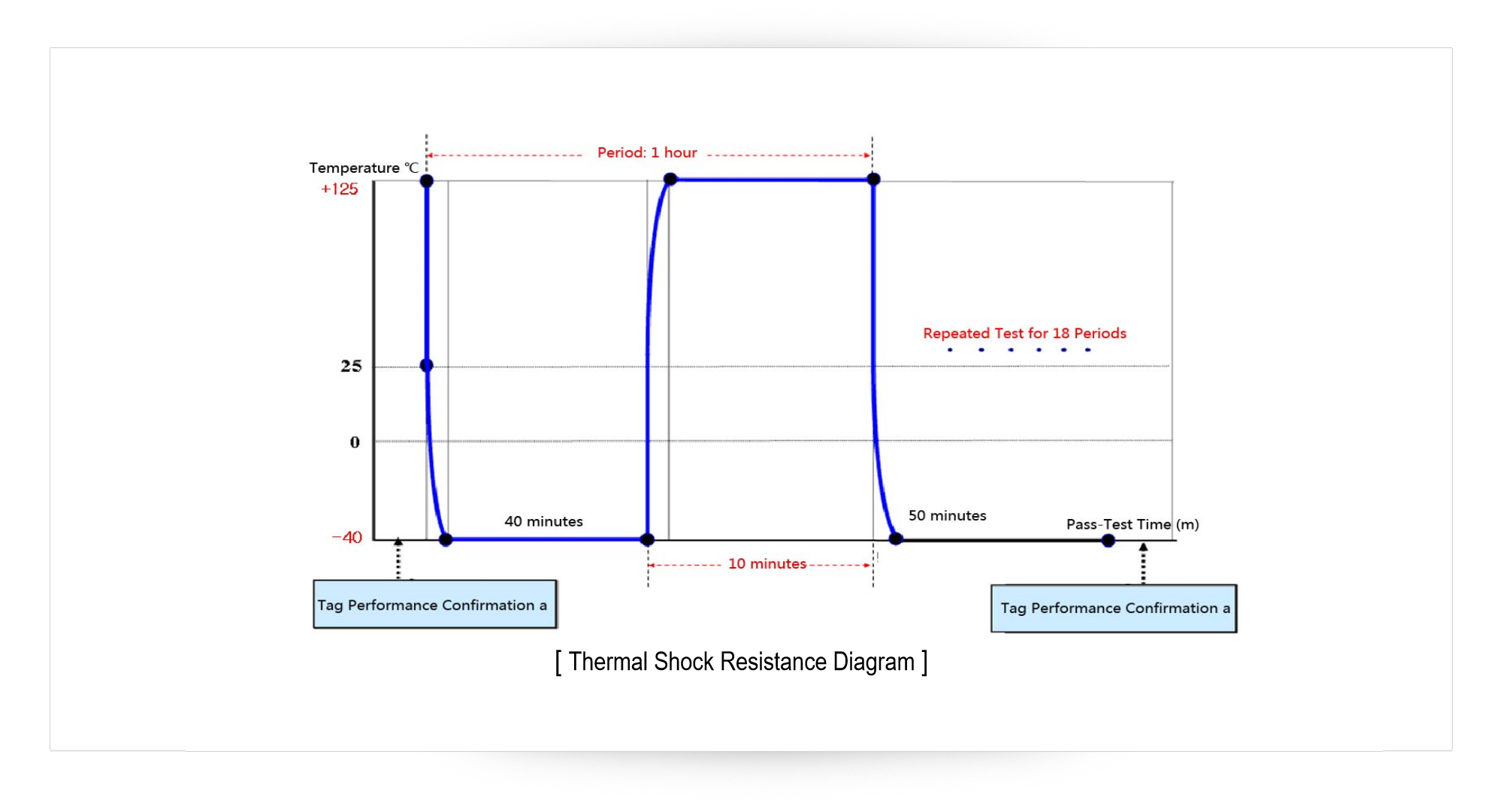

● Thermal Shock Resistance Validation (Complied with IEC 60068-2-14 Na Standard)

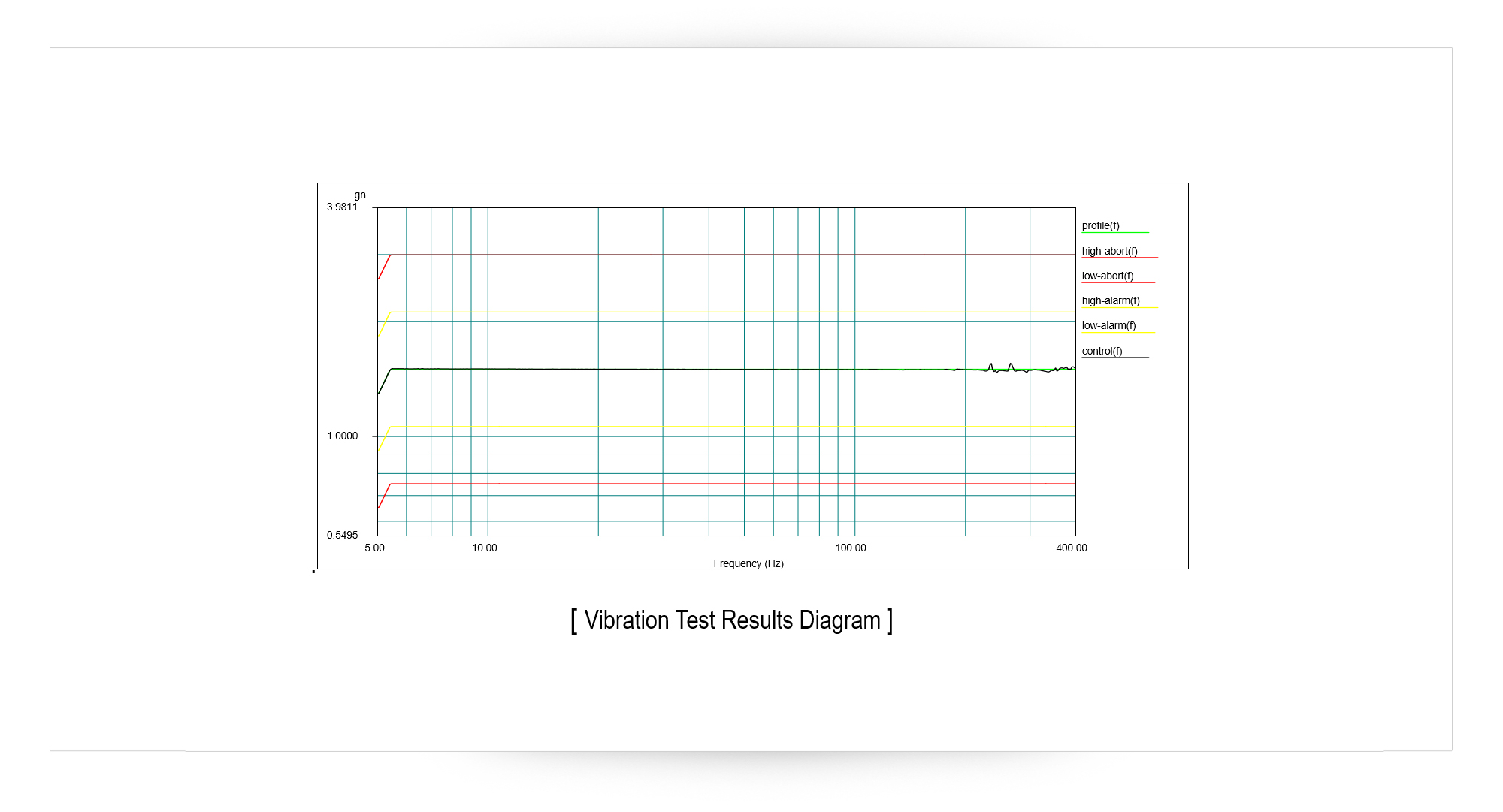

● Vibration Validation ( Complied with IEC 60068-2-6 Standard)
According to IEC 60068-2-6 Standard, Tag shall be operated normally without any abnormalities on Appearance after vibration of 3hours/5~400Hz.
|
● Drop & Overturned Validation
To Concrete |
Front |
Rear |
Top |
Bottom |
Left |
Right |
To Steel Plate |
OK |
OK |
OK |
OK |
OK |
OK |
According to IEC 60068-2-31 Standard, Tag shall be operated normally without any abnormalities on Appearance after dropped and overturned from the height of 1meter.
● Salt Spray Validation ( Complied with IEC 60068-2-11 Standard)
After the Tag has been placed on the environment with 5% of Brine concentration, 35℃ of Temperature, PH 6.5~7.2 and HumidityRH85% for 16hours, Tag shall be operated normally without any corrosion inside and outside.
|
● Physical specifications
Material |
FR4 |
Mounting system |
Epoxy |
Color |
Black |
(LengthxWidthxThickness)80 x 20 x 3.7mm Weight:10.23g
● Industry environment specification
PDA |
Designed to comply with FDA guidelines |
RoHS |
EU Directive 2002/95/EC |
● Operating Environment
Operating Temperature |
-30~85 / ℃ -22~185℉ |
Storage Temperature |
-40~150 / ℃ -40~302℉ |
Humidity |
5%-95% non-condensing
5%-95% non-condensing |
Protection Level |
IP65 |
● Packing Specifications (Plastic & Carton)
Carton |
As Delivery standards |
Pallet |
As Delivery standards |
Full Container |
As Delivery standards |
