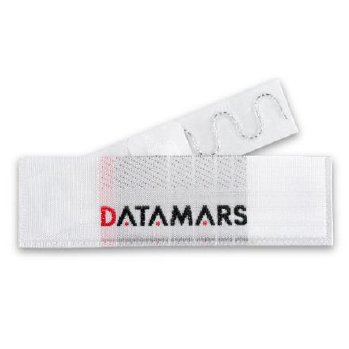

UHF RFID Laundry Tag（FT-301PA）
Dimension (LxHxW) : 75 x 20 x 2.5mm
(2.95” x 0.79” x 0.09”)
Weight : 0.7g (0.025oz)
Materials : 50% Cotton, 50% Polyester
Lifetime: Approx. 200 wash cycles or 3 years from shipping date
Memory : 128 bits (EPC)
Reading Distance : Up to 6 meters (19 feet)
SPECIFICATION
-
| Dimension (LxHxW) | 75 x 20 x 2.5mm (2.95” x 0.79” x 0.09”) |
|---|---|
| Weight | 0.7g (0.025oz) |
| Materials | 50% Cotton, 50% Polyester |
| Lifetime | Approx. 200 wash cycles or 3 years from shipping date |
| Memory | 128 bits (EPC) |
| Reading Distance | Up to 6 meters (19 feet) |
| Operating Power | Passive, Operated through Antenna’s RF field |
| Operating Frequency | 865-928 MHz |
| Operating Temperature | Parching:+204°C[399°F],12 seconds, 1 cycle Washing:+90°C[194°F],15 minutes, 200 cycles Drying:+180°C[356°F],200 cycles Ironing:+200°C[392°F],10 seconds Autoclave:3.2 bar, RH 85%, 5 minutes at 134°C[273°F] Mechanical Resistance:up to 60 bar |
| Storage Temperature | -40°C to +120°C (-40°F to +248°F) |
| Chemical Resistance | All chemicals common to the washing process |
| Compliance | ISO/IEC 18000-6C EPC Class 1 Gen 2 |
