UHF RFID Handheld
(P-820)

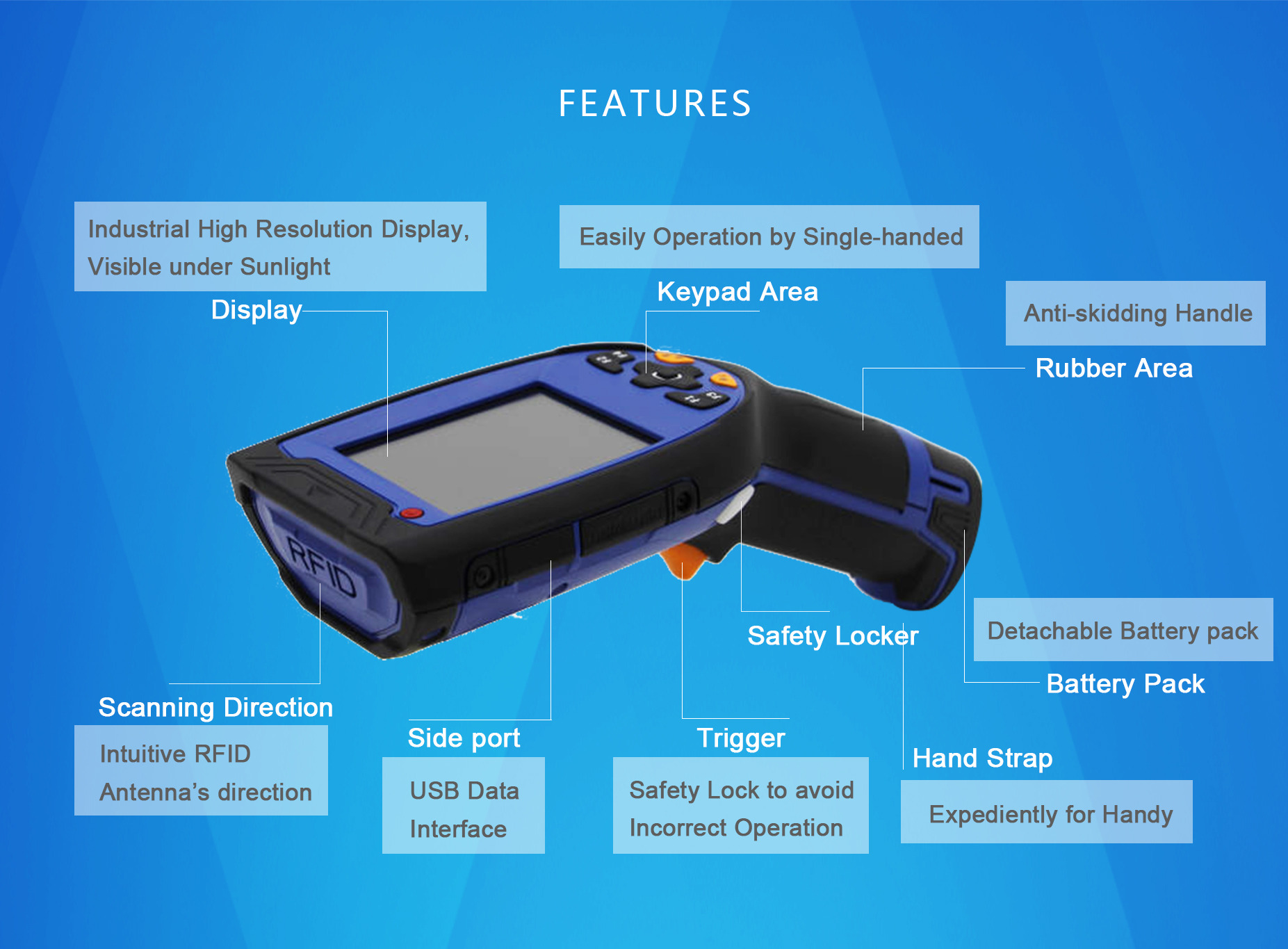

Industrial High Resolution Display, Visible under Sunlight
Friendly Design, Operation by Single-handed
Anti-skidding Handle
Intuitive RFID Antenna’s direction

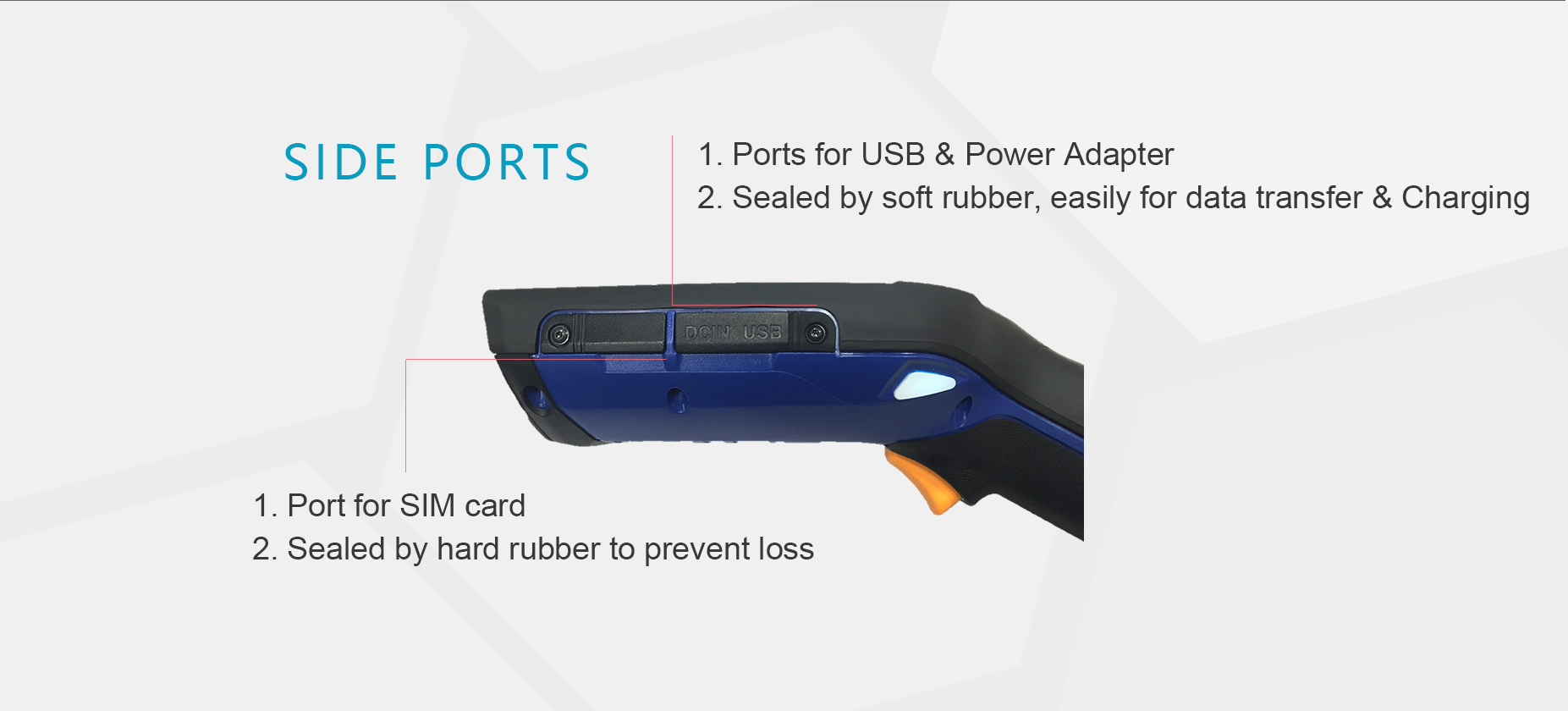

USB Data Interface

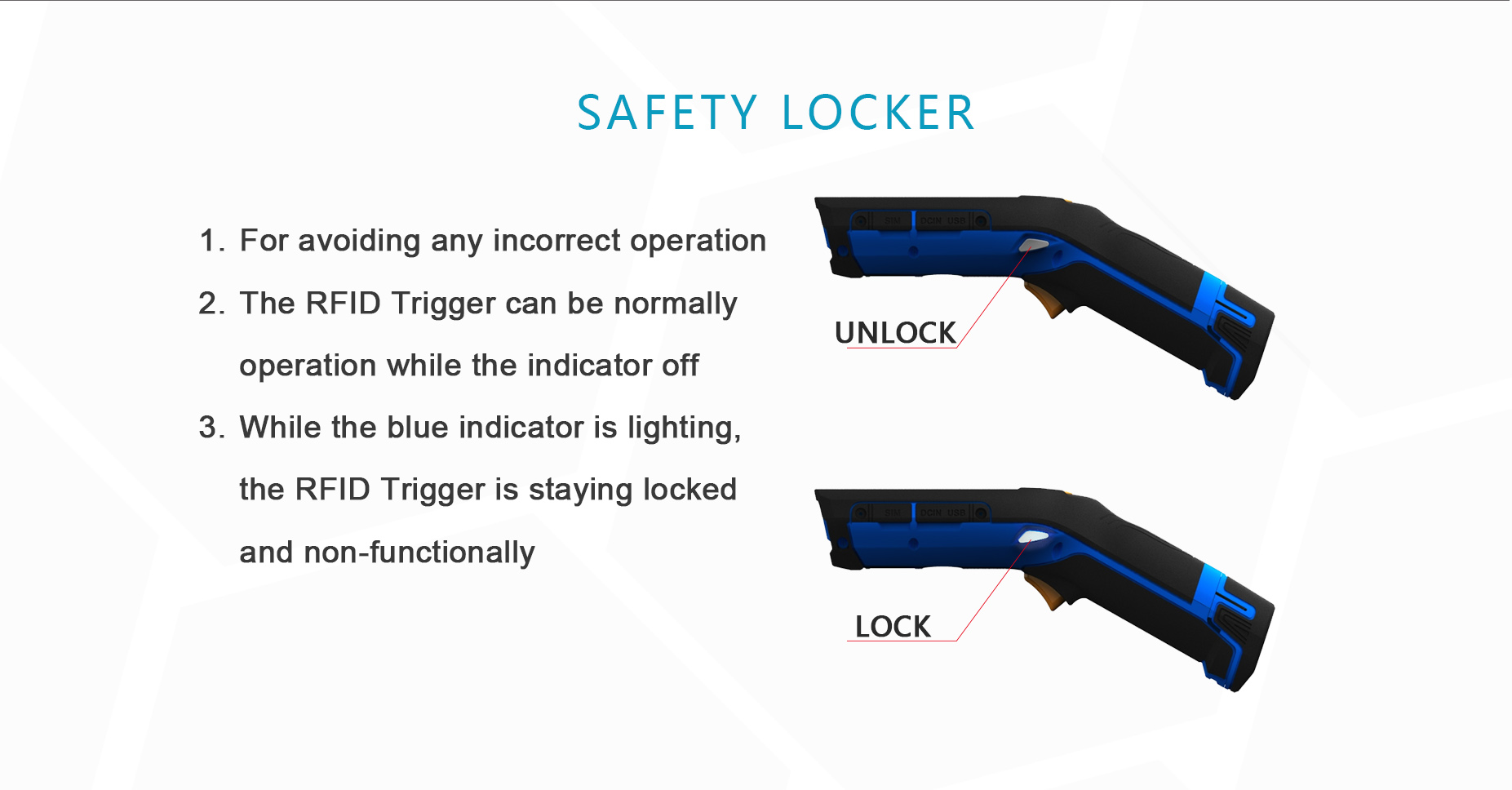

Safety Lock to avoid Incorrect Operation
Ergonomic Trigger button
Expediently for Handy
Detachable Battery pack
DESIGN FACTORS
FEATURES
SPECIFICATION
ACCESSORIES

Design Factors

-
DESIGN FACTORS DESCRIPTION SPECIFICATION
Operation Software Stable, Safe, Compatible Windows CE v6.0
Display Visibility under Sunlight 480*640 TFT LCD (w/Touch Screen)
UHF RFID Module Stable, Reliable, Self-demanded S/W Self-developed by Impinj R2000 Chip

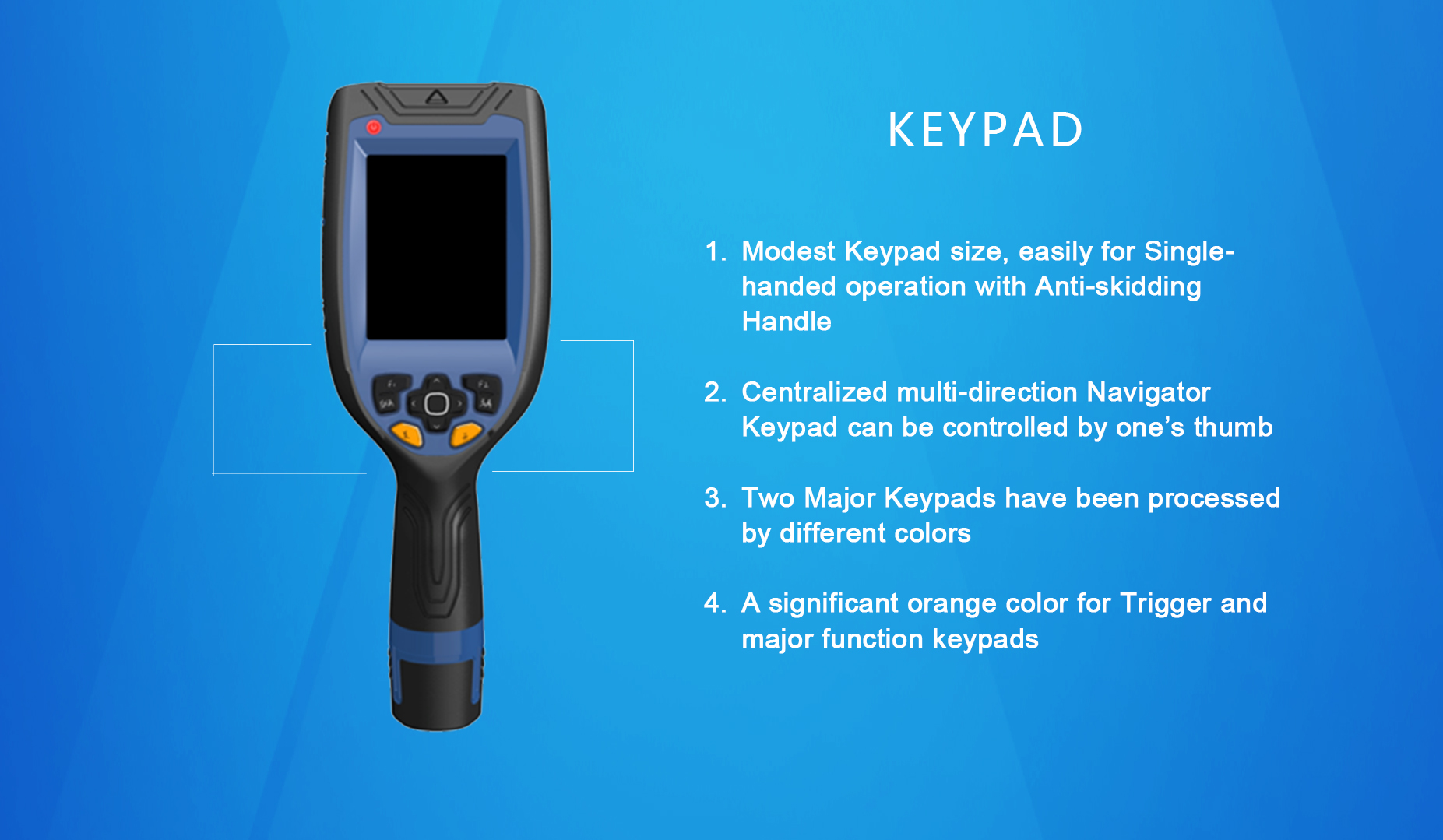

Keypad Fi Keypad, Operate by Single-handy Function x6, Navigation x1, Power x1, Trigger x1
Battery Power Meet 6~8 hours/day 3.7V/6800mAh (Cell Made by Japan Panasonic)
Communication ability Wire & Wireless 802.11b/g
Environmental Proof Industrial Level IP65, Drops to Concrete :4ft (1.2M)

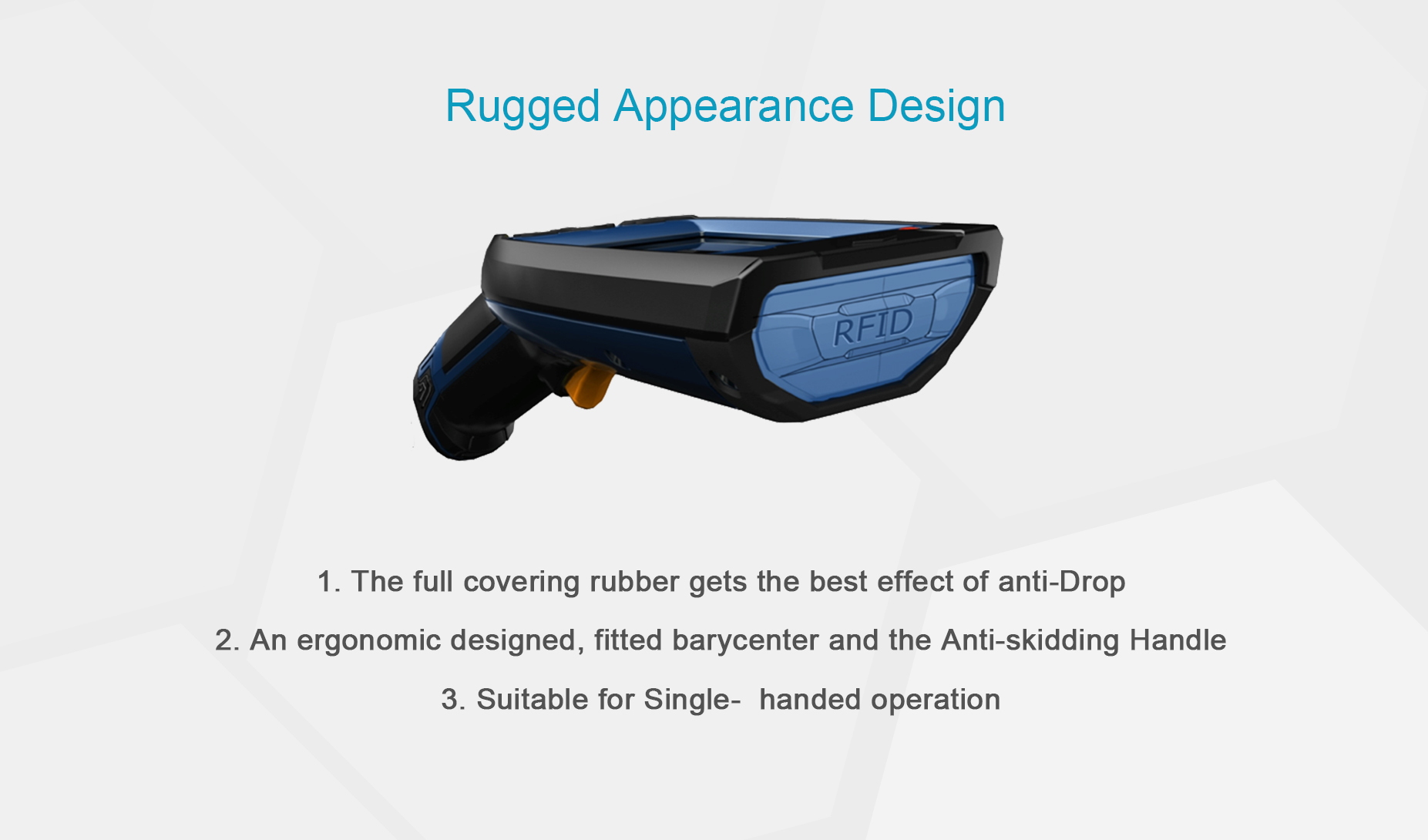

Mechanical Appearance Ergonomic Design Gun-Handle, Intuitive Antenna’s direction
Application Software Compatible, Expandable Open System for Secondary Development
-
p820 Product Image p820 Product Image p820 Product Image p820 Product Image p820 Product Image p820 Product Image

SPECIFICATION

-
CPU Marvell PXA 310，806MHz
Operation System Microsoft Windows CE v6.0
SDRAM 512MB
FLASH RAM 512MB
Expansion Memory Micro SD, 32GB (max.)
Display 3.5” 480*640 Half-Transparent TFT LCD
Touch Screen Resistive Touch Screen
Audio Wolfson Multimedia chip, Integrated Speaker
UHF RFID ● With Impinj’s Indy R2000 Reader chip
● Support ISO 18000-6C / EPC Global Class 1 Gen 2
● Reading Distance : 5 meters (Impinj’s E44 tag)
● Frequency Support : CCC, FCC, NCC
Communication Wi-Fi, 802.11 b/g
Keypad Navigator, Confirm, Cancel, Trigger, Function
Interface Micro SD x1
Micro USB x1
SAM x1 (Complied standard ISO7816)
Power adapter x1
Battery 3.7V/6800mAh, Charging time: 2 hours
Meet 8 hours continuously operation
Power Adapter Input 100 ~ 240VAC, 50 ~ 60Hz
Output 5VDC ± 10%, 2.0A
Environment Operating Temperature: -20°C ~ +50°C
Storage Temperature: -40°C ~ +70°C
Operating Humility: 5% ~ 95% Non-condensing
Environmental Proof IP65
Drop Proof 4ft Drops to concrete (1.2 meters)
Dimension & Appearance 10” (L) x 3.54” (W) x 4.45” (H)
256mm (L) x 90mm (W) x 113mm (H)
Accessories Power Adapter

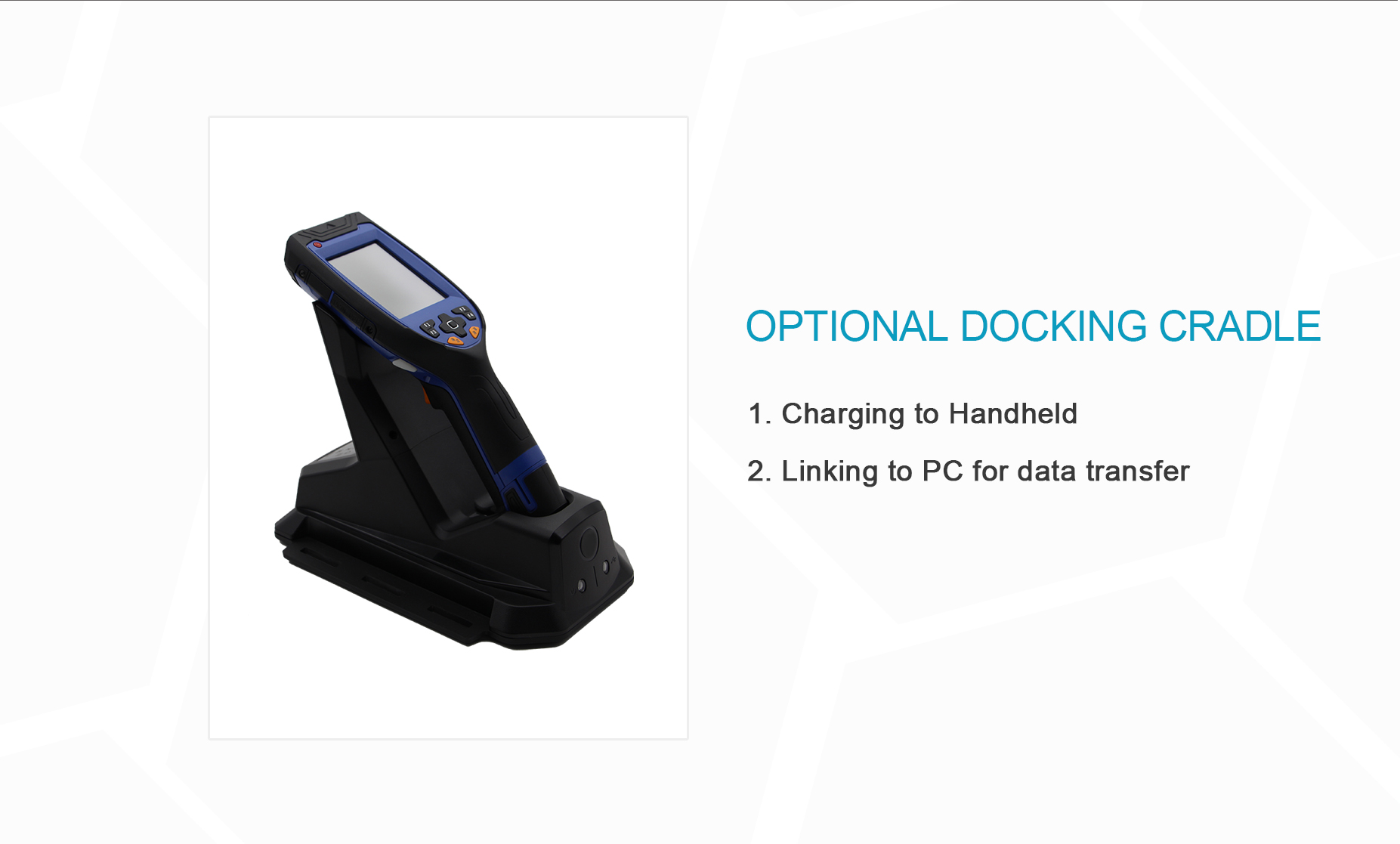

K931 Docking Cradle (Optional)

STANDARD ACCESSORIES

-
ITEM UNIT Quantity
Handheld Set 1
Power Adapter Piece 1
User Manual Volume 1
K-931 Docking Cradle Set (Optional)
