HOME / PRODUCTS-Handheld / Mobile IOT Industrial Tablet A202

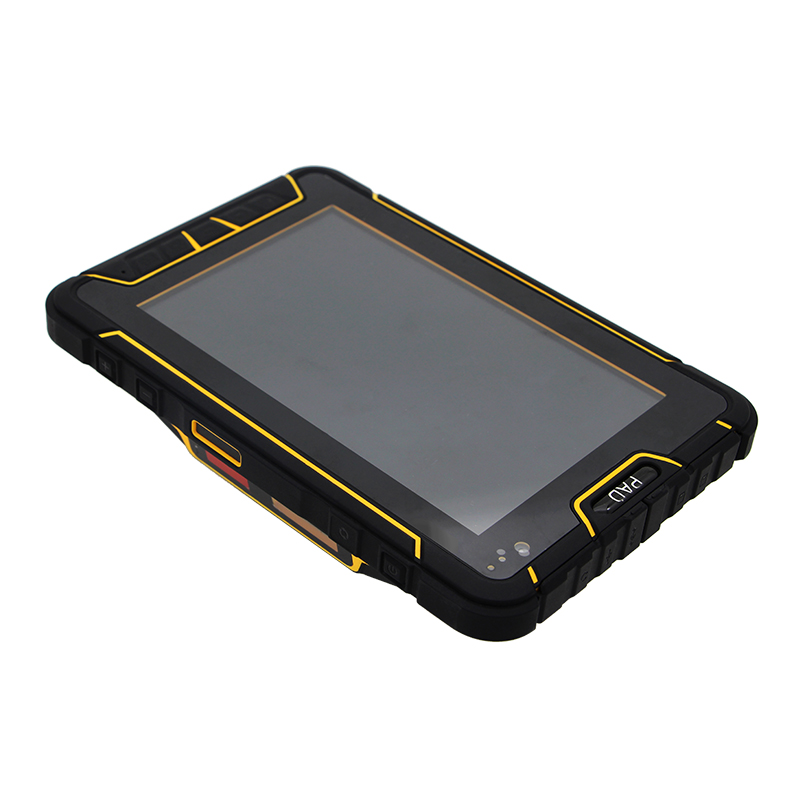

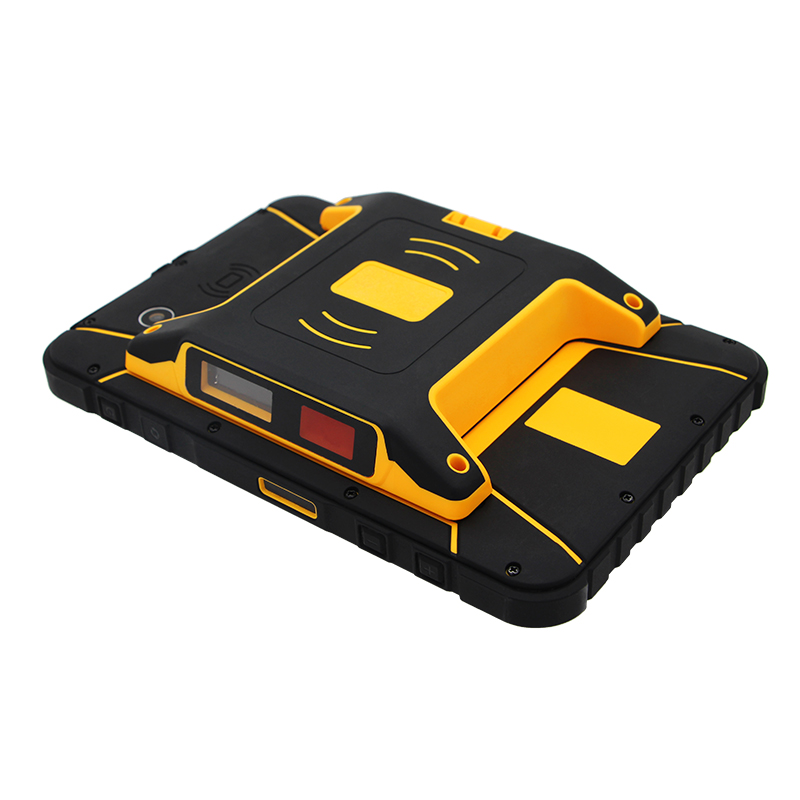

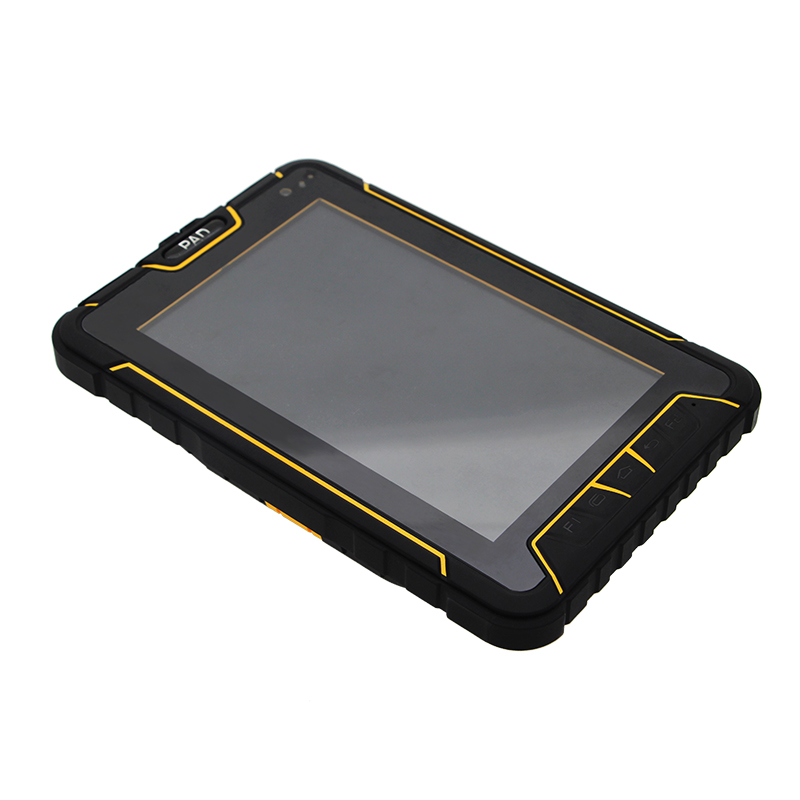

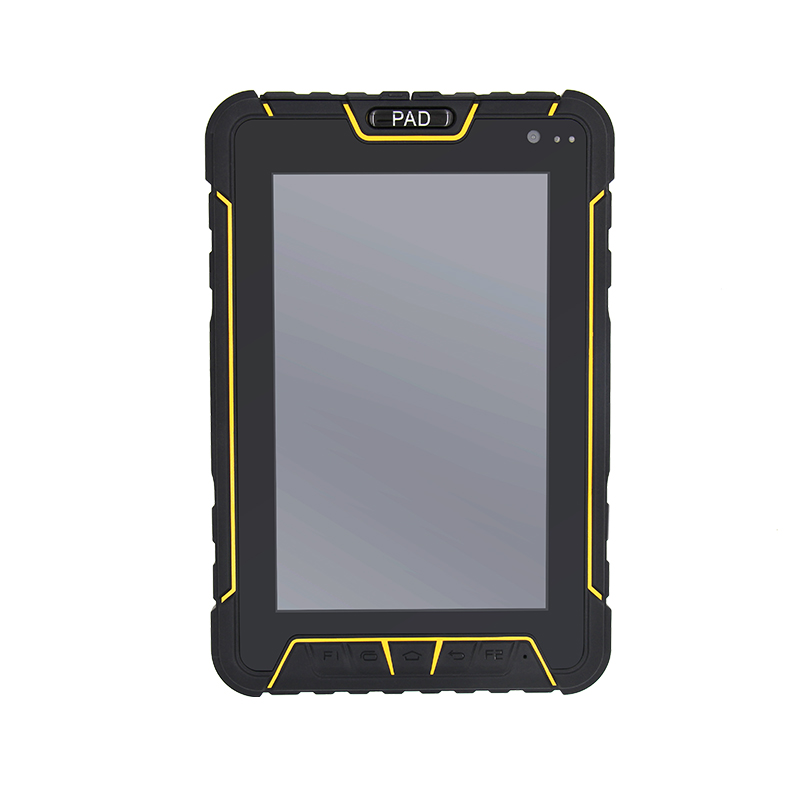

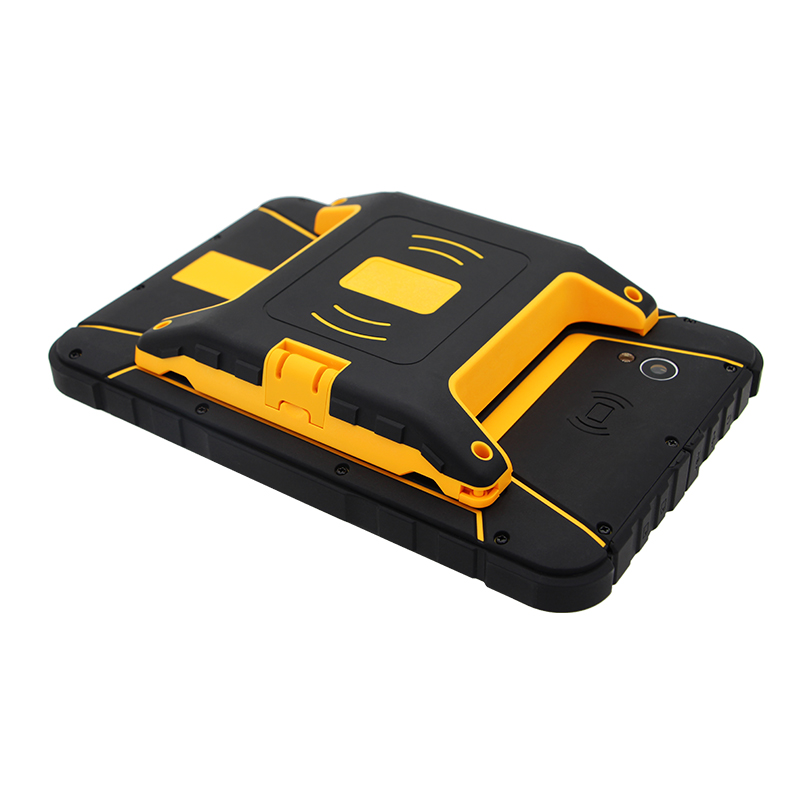

Mobile IOT Industrial Tablet A202
UHF RFID
2d Barcode
Android4.4
4G
GPS
Wi-Fi
Bluetooth4.0
Camera
FEATURES
-
● Performance Parameters
| Operation System | Android 4.4/5.1 |
|---|---|
| CPU | MSM 4-Core High Speed，Processor 1.2GHz |
| Memory | RAM：2G/3G FLASH：16G/32G |
| Expansion Memory | Micro SD 128 (max.) |
| Display | 7" Capacitive Touch screen 1280*800, Workable with glove or watering display |
| USB Interface | 5-pin Micro USB 2.0, Support OTG (RJ45/RS232) |
● Protection
| Industrial Level | IP67 |
|---|---|
| Drop Proof | 1.2 Meters to Concrete |
● Wireless Communication
| Bluetooth | BT 4.0 |
|---|---|
| Wi-Fi | IEEE 802.11b/g/n |
| Ethernet (Option via USB cable) | Support Static IP & DHCP, PPPoE Dialing & Internet |
| 4G (Option) |
China Mobile: TDD/TD-SCDMA/GSM China Unicom: FDD/WCDMA/GSM China Telecom: FDD/EVDO/CDMA |
● Data Collection (Option)
| GPS (1 of 3) |
Support A-GPS Support Beidou +GPS Dual mode (Accuracy:2.5m) Interface of independent module (support Beidou GPS simultaneously),support 3 Differential data formats: RTCM2.3, RTCM3.0 & CMR |
|---|---|
| Fingerprint | Resolution: 150*200 |
| UHF RFID |
Frequency: 840~960MHz Protocol: EPC C1 GEN2/ISO 18000-6C Output Power: 10dBm-30dBm Distance: 6meters (max.) |
| Barcode | 1D、2D Barcode |
● Mechanical Parameters
| Digit Keyboard | Home, Menu, Return, Power, Volume, Reset & 2 Option-Keys (F1/F2) |
|---|---|
| Camera |
Front: 2M pixels Rear: 8M Pixels, Auto focus |
| Earphone | 3.5mm Audio interface (with microphone) |
| Flashlight | Support (Emergency lighting) |
| Compass | Support |
| Acceleration sensor | Support |
| Vibration | Support |
| Dimension |
8.22」(H)*5.47」(W)*0.78」(D) (209mm*139mm*20mm) |
| Weight | 0.27lbs (590g) |
● Battery
| Battery | 3.7V/7000mAh Li-Ion Rechargeable Battery |
|---|---|
| Standby | Less than 10mA while standby |
● Environment Characters
| Operating Temperature | -20℃ ~ +50℃ |
|---|---|
| Storage Temperature | -40℃ ~ +60℃ |
| Humility | 5%~95% Non-Condensing |
