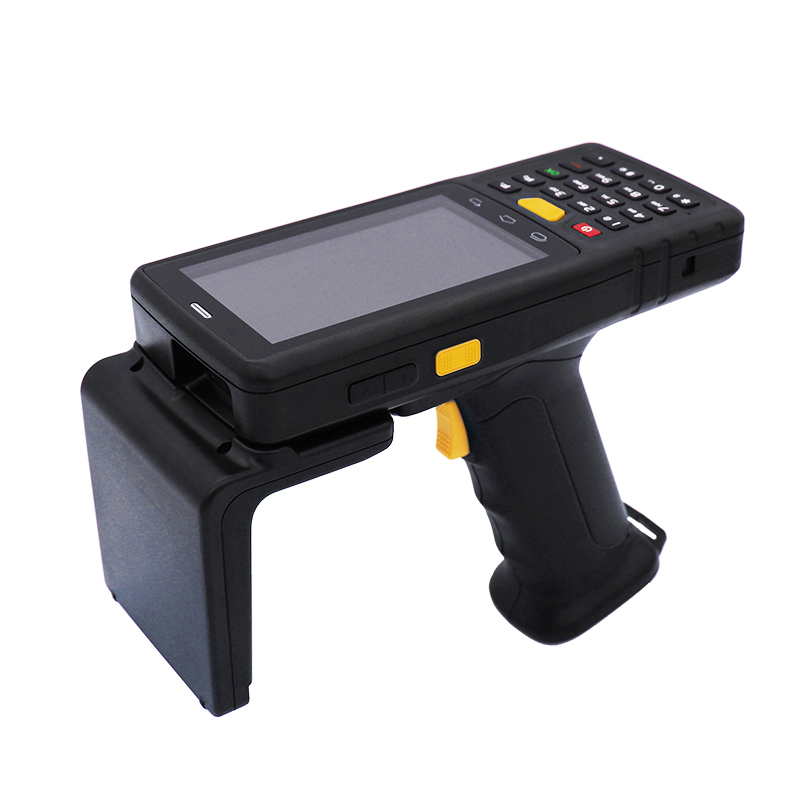

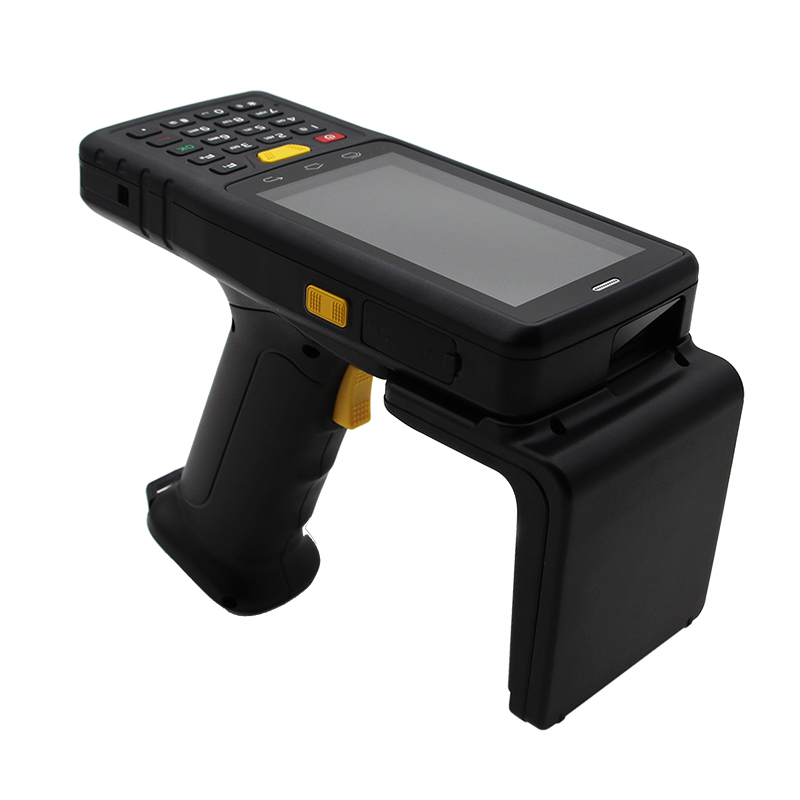

UHF RFID Industrial Handheld A201
UHF RFID
2d Barcode
Android4.4
4G
GPS
Wi-Fi
Bluetooth4.0
Camera
FEATURES
-
● Performance Parameters
| Operation System | Android 5.1 |
|---|---|
| CPU | MSM 4-Core High Speed Processor 1.2GHz |
| Memory | RAM：2G FLASH：16G |
| Expansion Memory | Micro SD 128 (max.) |
| Display | 4" TFT 800*480,Capacitive Touch screen |
| SB Interface | USB 2.0, Support OTG |
● Protection
| Industrial Level | IP65 |
|---|---|
| Drop Proof | 1.2 Meters to Concrete |
● Wireless Communication
| Bluetooth | V4.0 |
|---|---|
| Wi-Fi | Support IEEE 802.11b/g/n |
| 4G (Option) |
China Unicom: FDD/WCDMA/GSM China Telecom: FDD/EVDO/CDMA |
| Camera | 8M pixels |
● Data Collection (Option)
| GPS | Support A-GPS |
|---|---|
| UHF RFID |
Frequency: 840~960MHz Protocol: EPC C1 GEN2/ISO 18000-6C Output Power: 10dBm-30dBm Distance: 6meters (max.) |
| Bar code |
1D 2D |
● Mechanical Parameters
| Digit Keyboard | 19-key |
|---|---|
| Dimension |
6.61」(H)*2.95」(W)*1.02」(D) (168mm*75mm*26mm) |
| Weight | 0.16lbs (350g) |
● Built-in Battery
| Handle Battery |
3.7V/3800mAh Li-Ion Battery(Rechargeable) 3.7V/5000mAh (Option) |
|---|
● Environment Characters
| Operating Temperature | -20℃ ~ +50℃ |
|---|---|
| Storage Temperature | -40℃ ~ +60℃ |
| Humility | 5%~95% Non-Condensing |
