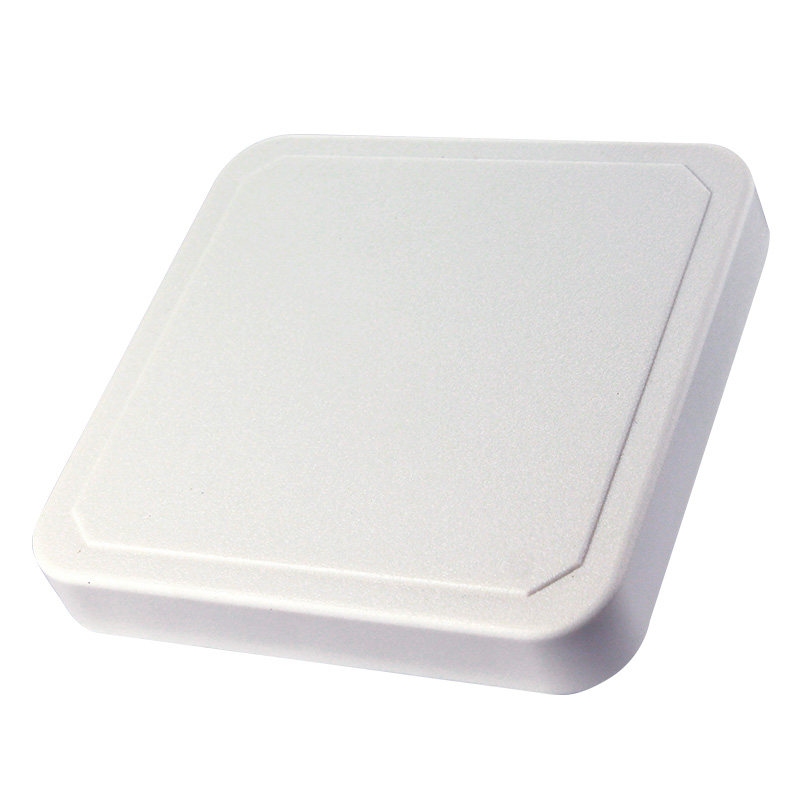

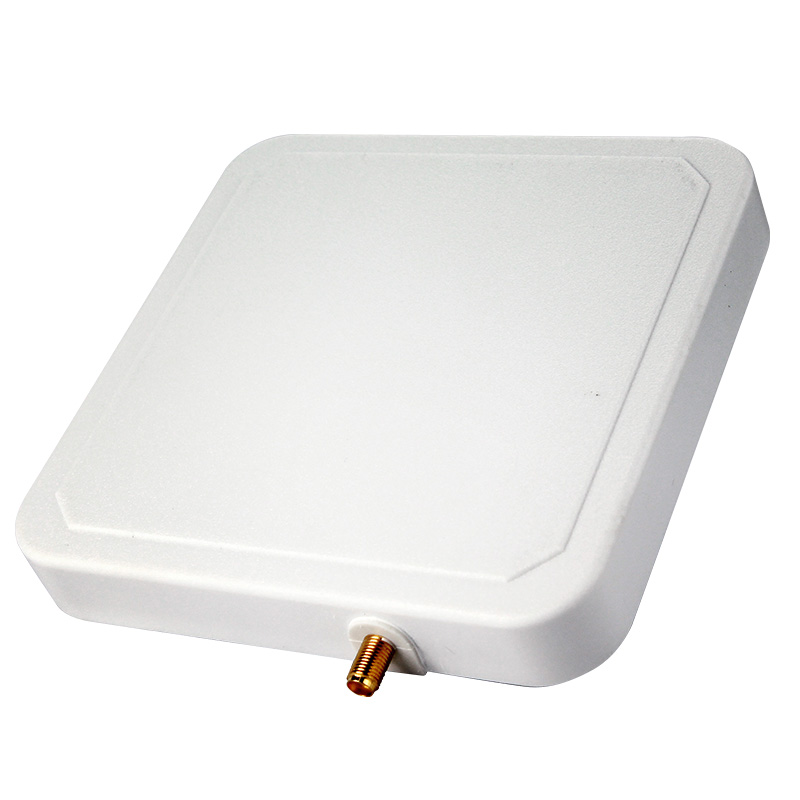

UHF RFID Antenna (A3128)

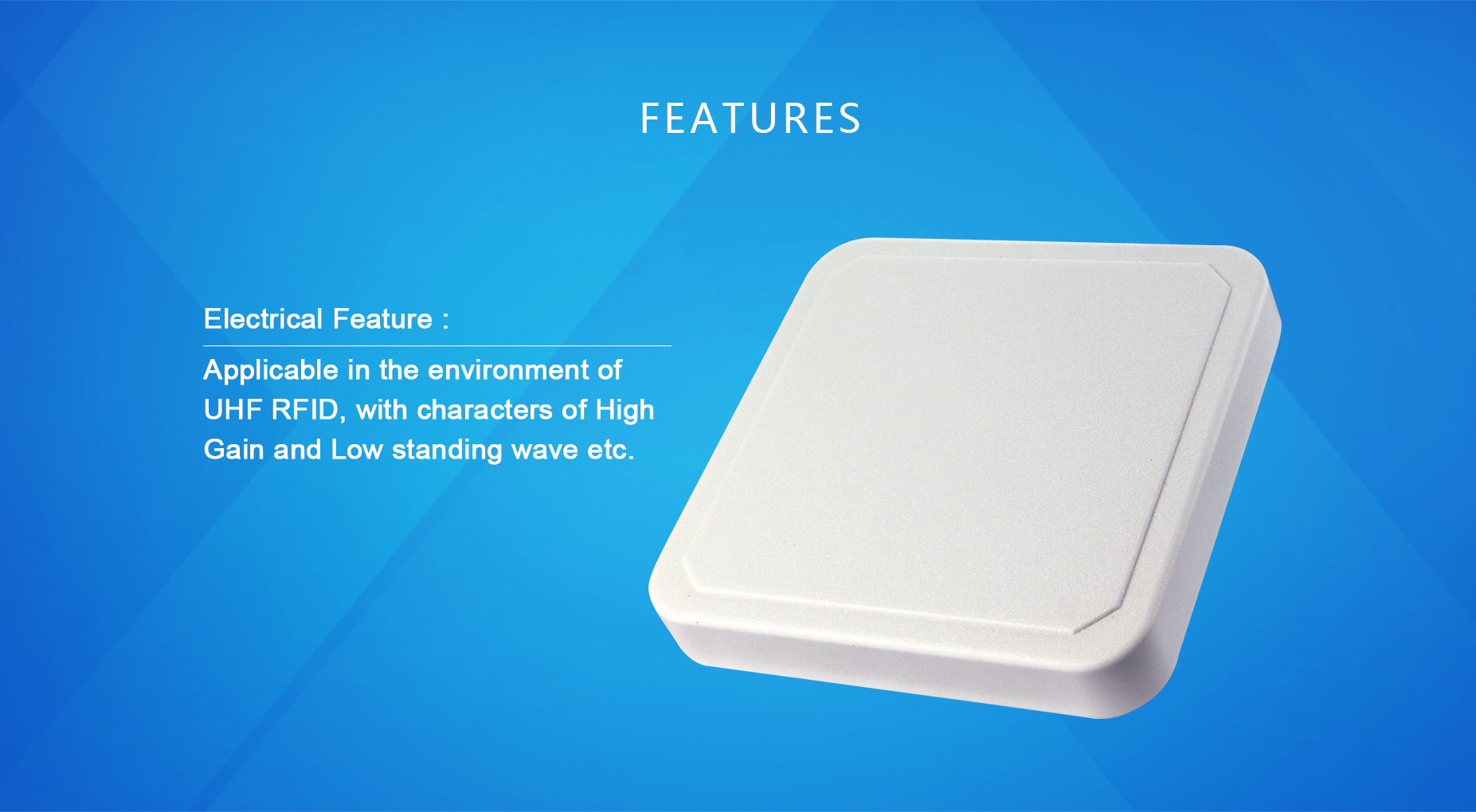

Electrical Feature :
Applicable in the environment of UHF RFID, with characters of High Gain and Low standing wave etc.

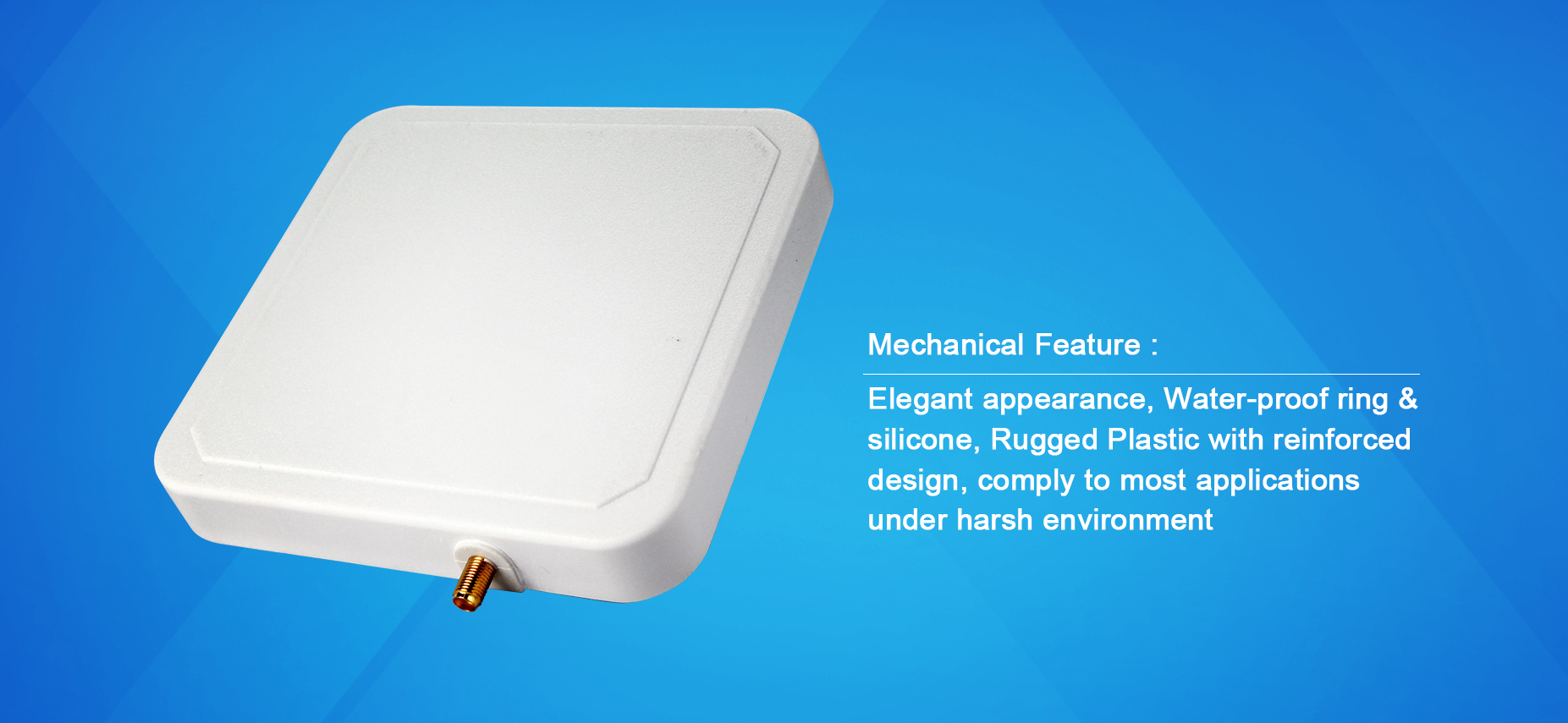

Mechanical Feature :
Elegant appearance, Water-proof ring & silicone, Rugged Plastic with reinforced design, comply to most applications under harsh environment

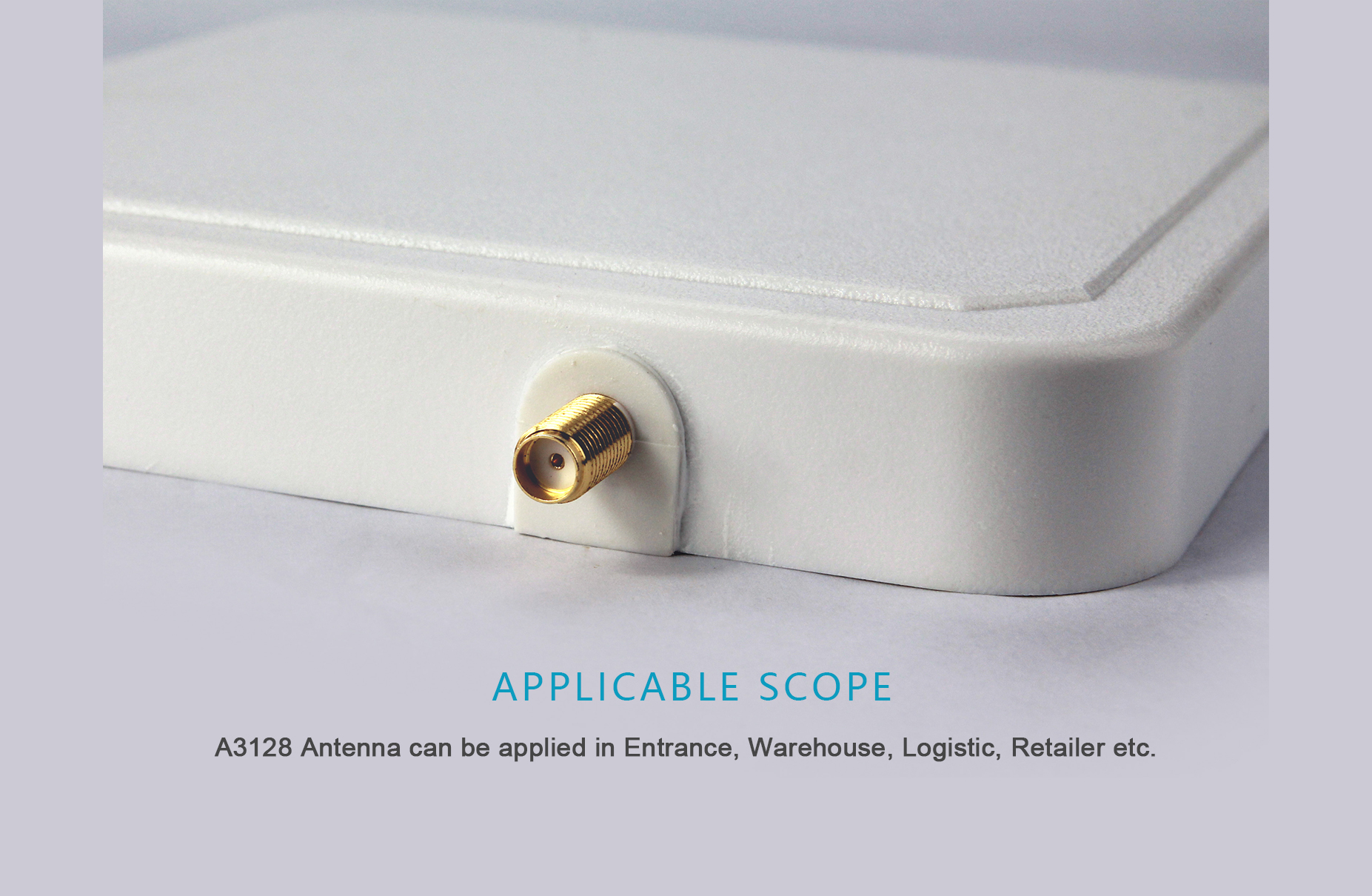

A3128 Antenna can be applied in Entrance, Warehouse, Logistic, Retailer etc.

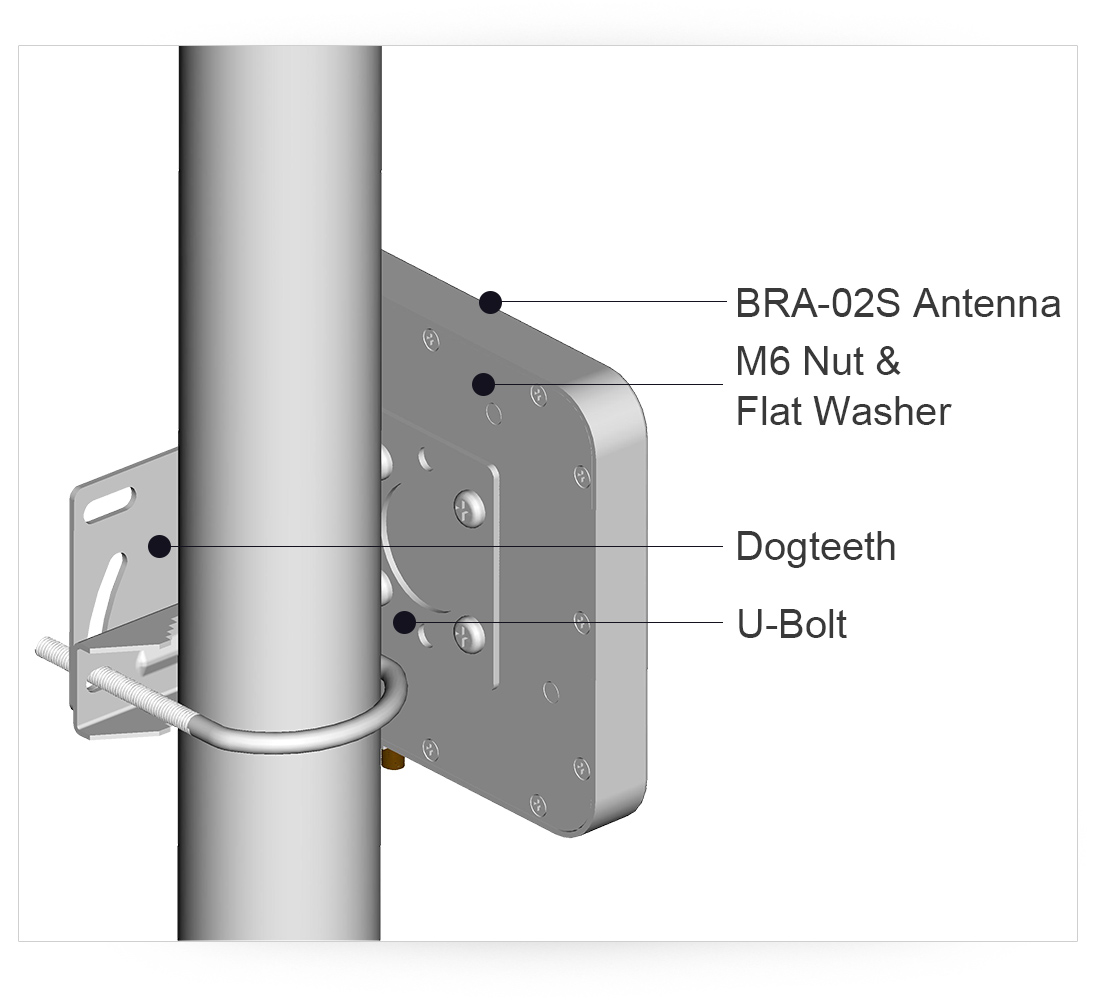

Installation :
By Optional Rugged Bracket or customers’ own Pillar, links to Reader through coaxial cable.
Antenna can be flexible installed as vertical or horizontal according to reality.
-
PERFORMANCE
-
| Frequency Range | 840MHz～960MHz |
|---|---|
| Voltage Standing-wave Ratio | ≤1.3:1 |
| Gain | > 6dBic |
| HPBW (H-side) | 90° |
| HPBW (E-side) | 90° |
| Circularly polarity | Circular |
| Relative humility | 5%～95% |
| Input Resistance | 50 ohms |

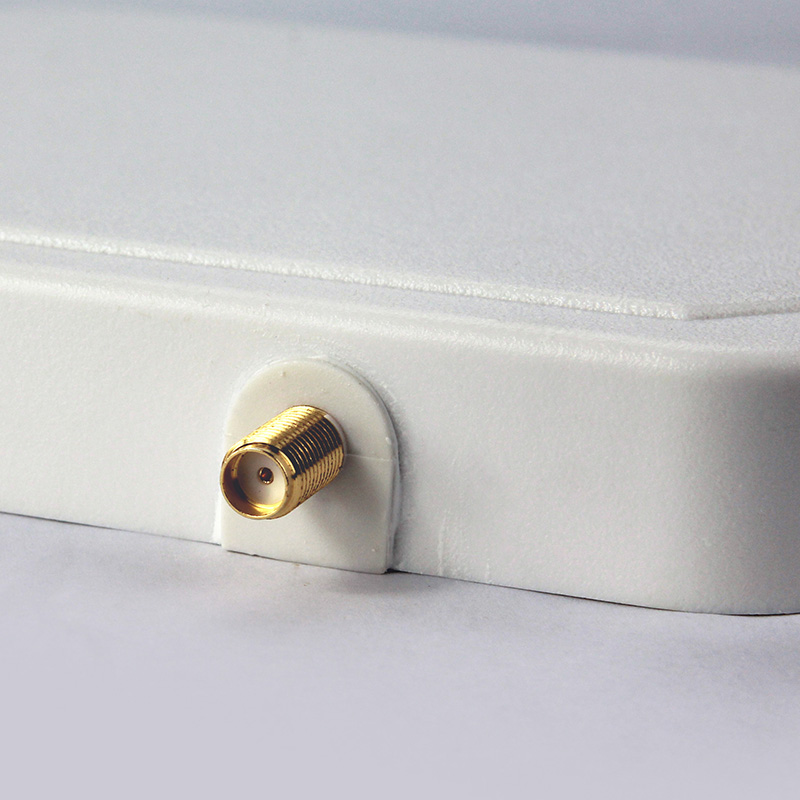

| Type of Connector | SMA-50KFD (Screw/External – Female) |
| Position of Connector | Aside of Antenna |
MECHANICAL
-
| Dimension | 5.04” (L) x 5.04” (W) x 0.78” (H) 128mm (L) x 128mm (W) x 20mm (H) |
|---|---|
| Weight | 0.66 lbs. (without Bracket) |
| Material | Industrial Plastic ASA & Aluminum |
| Color | Ivory |
| Protection Level | IP67 |
| Operating Temperature | -40℃~+ 85℃ |
| Storage Temperature | -40℃~+ 85℃ |

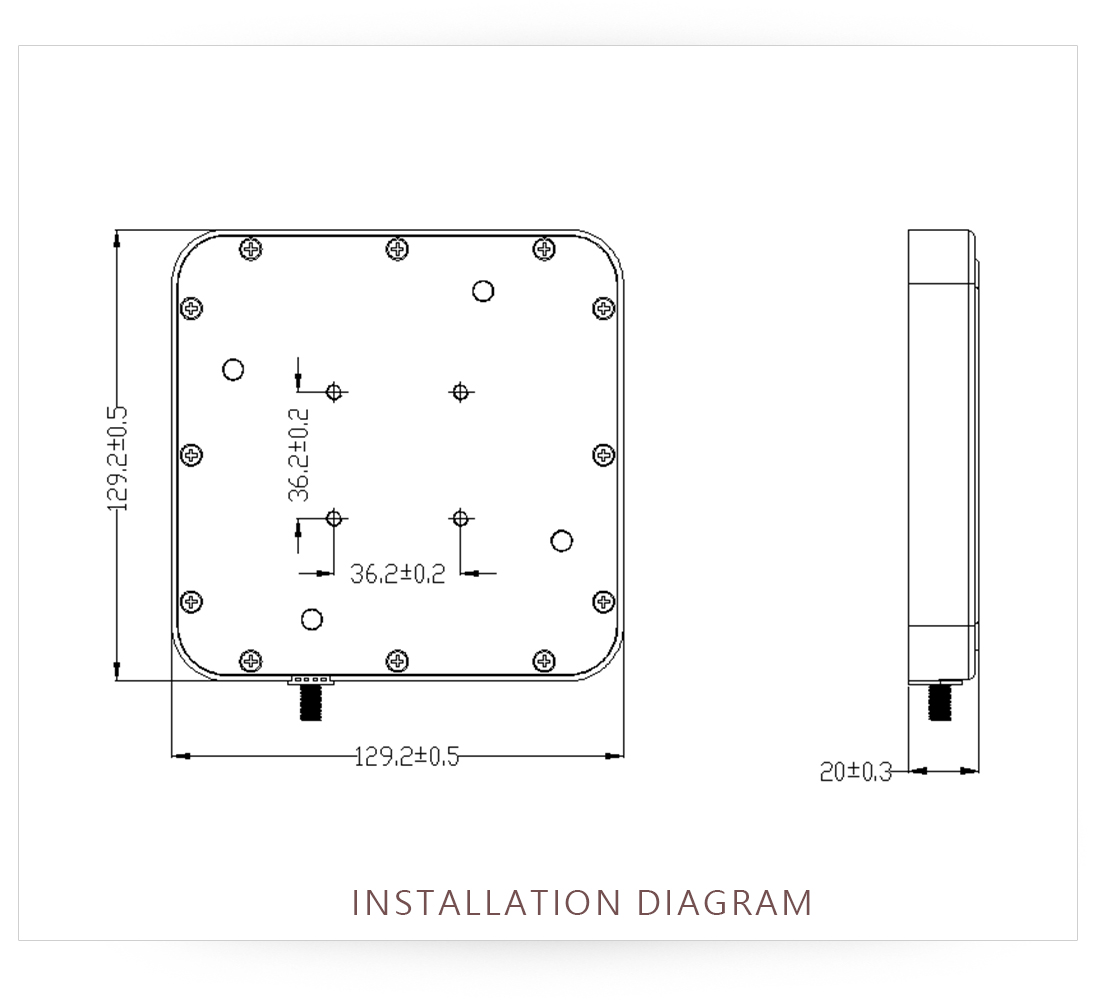

DIMENSION
-
UNIT : mm
