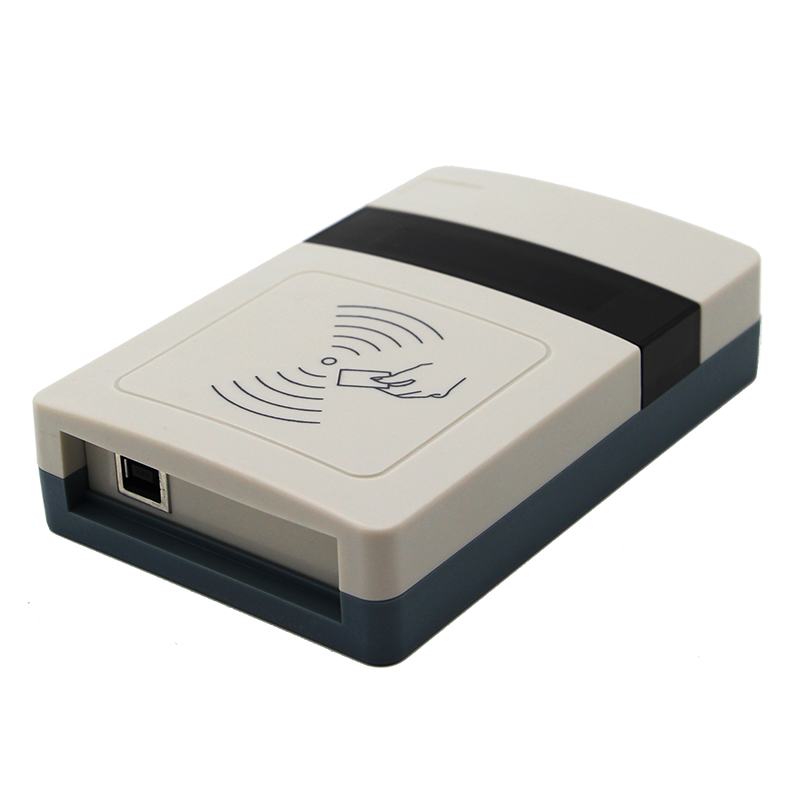

UHF RFID Reader/Writer (U5010)

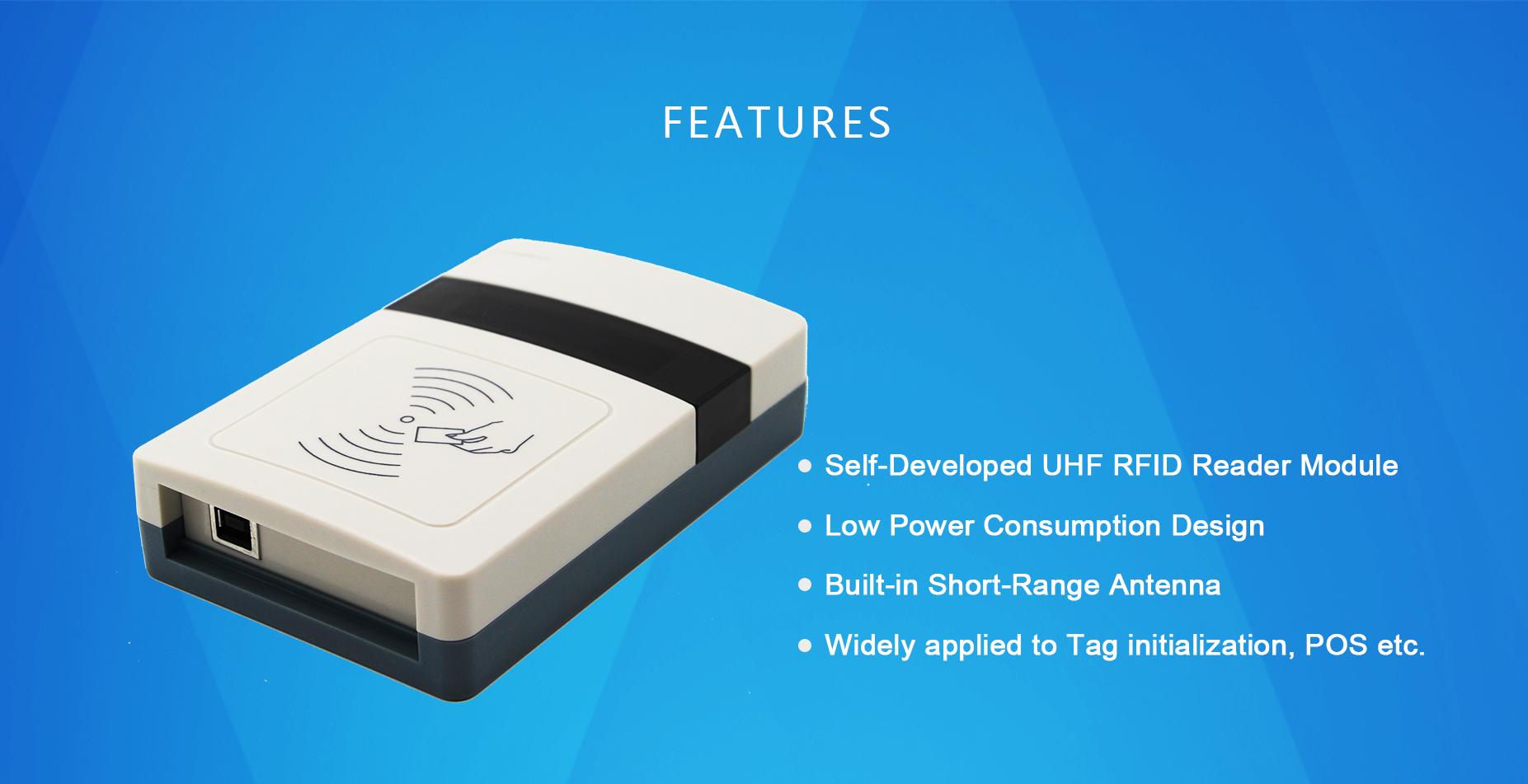

Self-Developed UHF RFID Reader Module
Low Power Consumption Design
Built-in Short-Range Antenna
Widely applied to Tag initialization, POS etc.
-
PARAMETERS
-
| Reader Module | Self-Developed M1011 UHF RFID Module |
|---|---|
| Interface | USB Client （Type B） |
| Operation Mode | Operated by PC |
| Antenna | Built-in Short-Range Antenna |
| Protocol | ISO 18000‐6C / EPC Global C1 G2 |
| Frequency Range | ETSI 865 ~ 867MHz FCC 902 ~ 928MHz CCC 920 ~925MHz, 840 ~ 845MHz NCC 922~928MHz |
| Power Output | 0dBm ~ +23dBm (Adjustable by Software) |
| Modulation | DSB-ASK |
| Power Input | USB |
| Input Voltage | 5VDC |
| Operating Temperature | ‐20℃~+50℃ |
| Storage Temperature | ‐40℃~+70℃ |
| Operating Humility | 10%~90% |
| SDK | Microsoft .NET APIs, Java API, Instruction Set |
| Dimension | 4.72” (L) x 3.07” (W) x 1.12” (H) 120mm (L) x 78mm (W) x 28.5mm (H) |
