Intelligent Industrial UHF RFID Reader (R84L)



Support ISO-18000-6C/EPC Global C1G2 protocol
Linux O/S
Various Interface to satisfy multiple applications
Available for Secondary Development for Self-operation

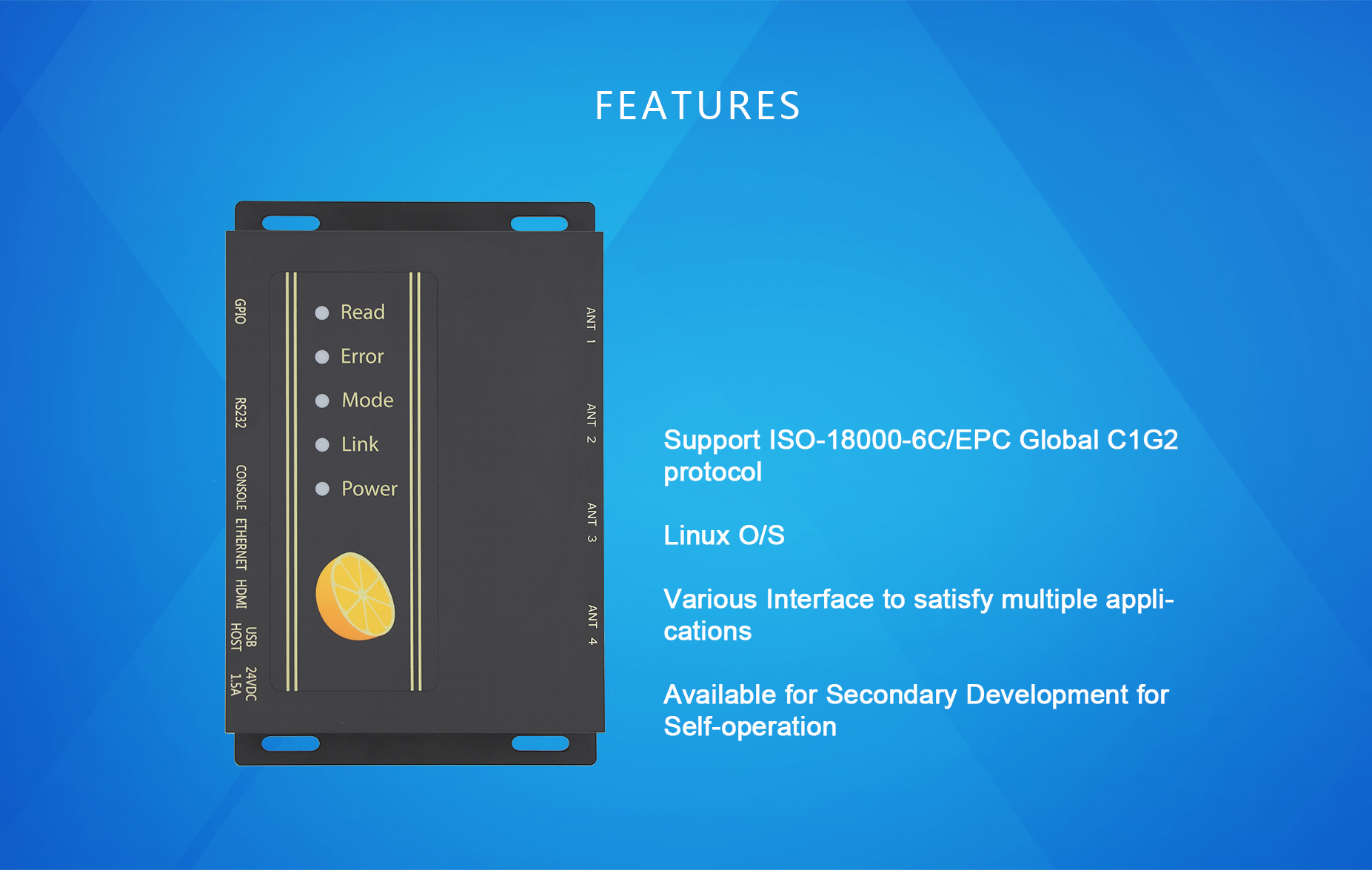

FEATURES
PARAMETERS
DIMENSION
-

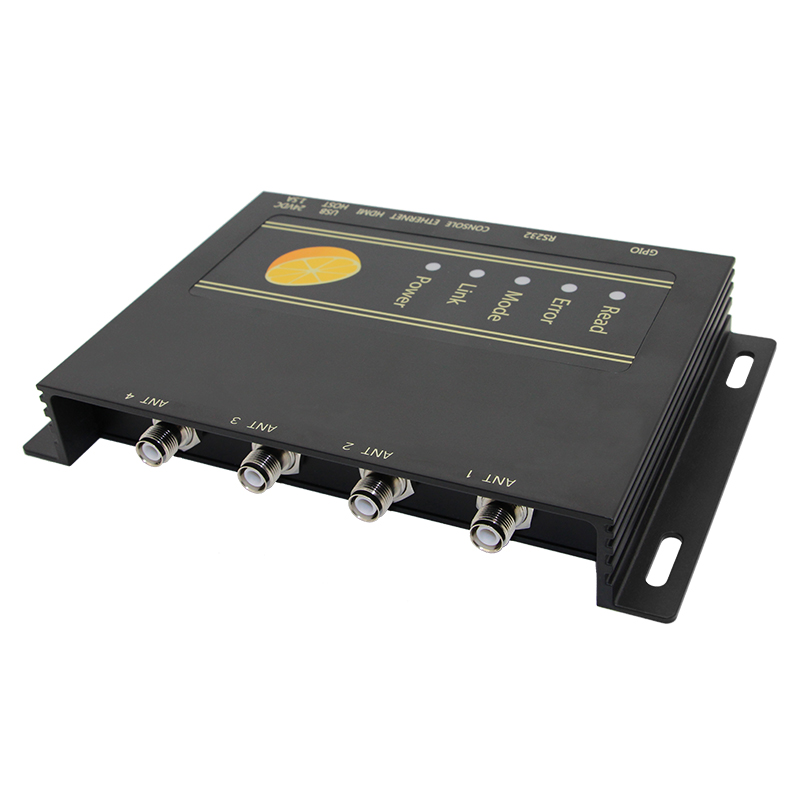

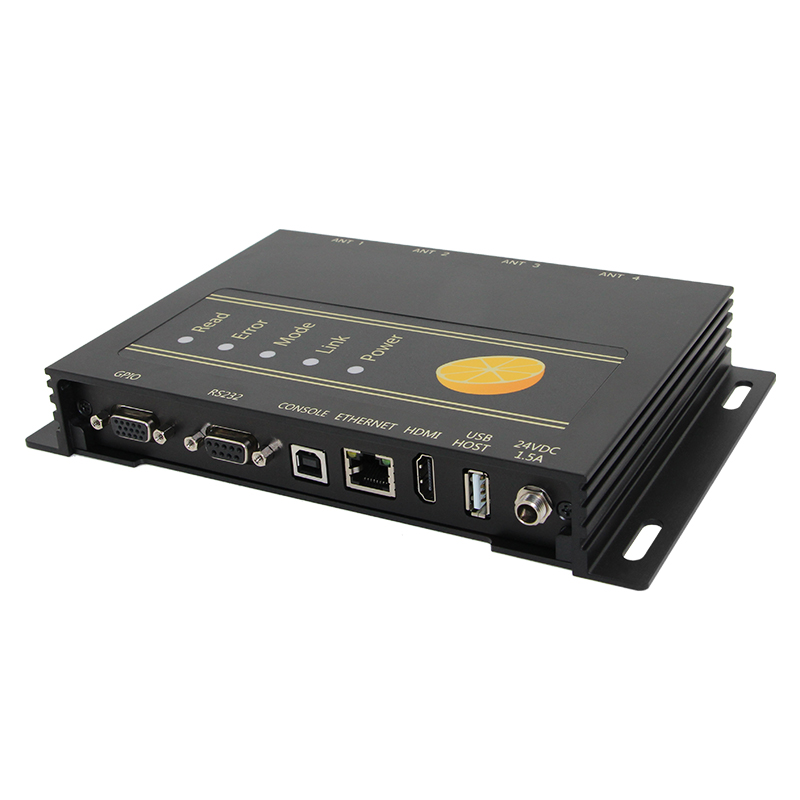

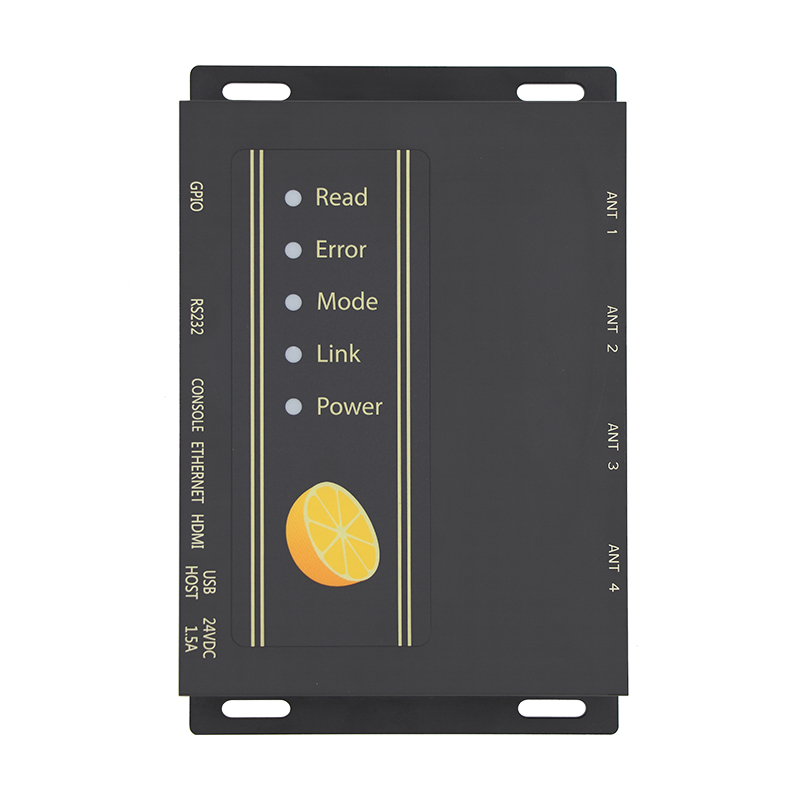

R84L Product Image

PARAMETERS

-
Reader Chip Impinj Indy R500 or R2000
Interface USB Console x1, RS232 x1, RJ45 x1, USB 2.0 x2 (Host)
Operation System Raspbian GNU/Linux 8
Display port HDMI x1
Protocol ISO18000‐6C/EPC Global C1G2
Frequency Range ETSI 865 ~ 867MHz
FCC 902 ~ 928MHz
CCC 920 ~925MHz, 840 ~ 845MHz
NCC 922~928MHz
Antenna 4 channels TNC (Screw External/Needle Internal)
Power Output 1.0dBm ~ +30dBm, 1.0dBm Step-in
Reading Distance 9 Meters (according to Tag & environment)
Power Input 24VDC Via Power Adapter
Standard In-Out Input x4, Output x4, 5VDC Output x1, Reset x1
PoE Support 802.3af
Operating Temperature ‐20℃~+50℃
Storage Temperature ‐40℃~+70℃
Operating Humility 10%~90%
Dimension 8.42” (L) x 5.35” (W) x 1.25” (H)
214mm (L) x 136mm (W) x 32mm (H)
SDK Microsoft .NET SDK, Java SDK, support full-function Instruction Set
Secondary Development Provide Secondary Development, Java & ANSIC

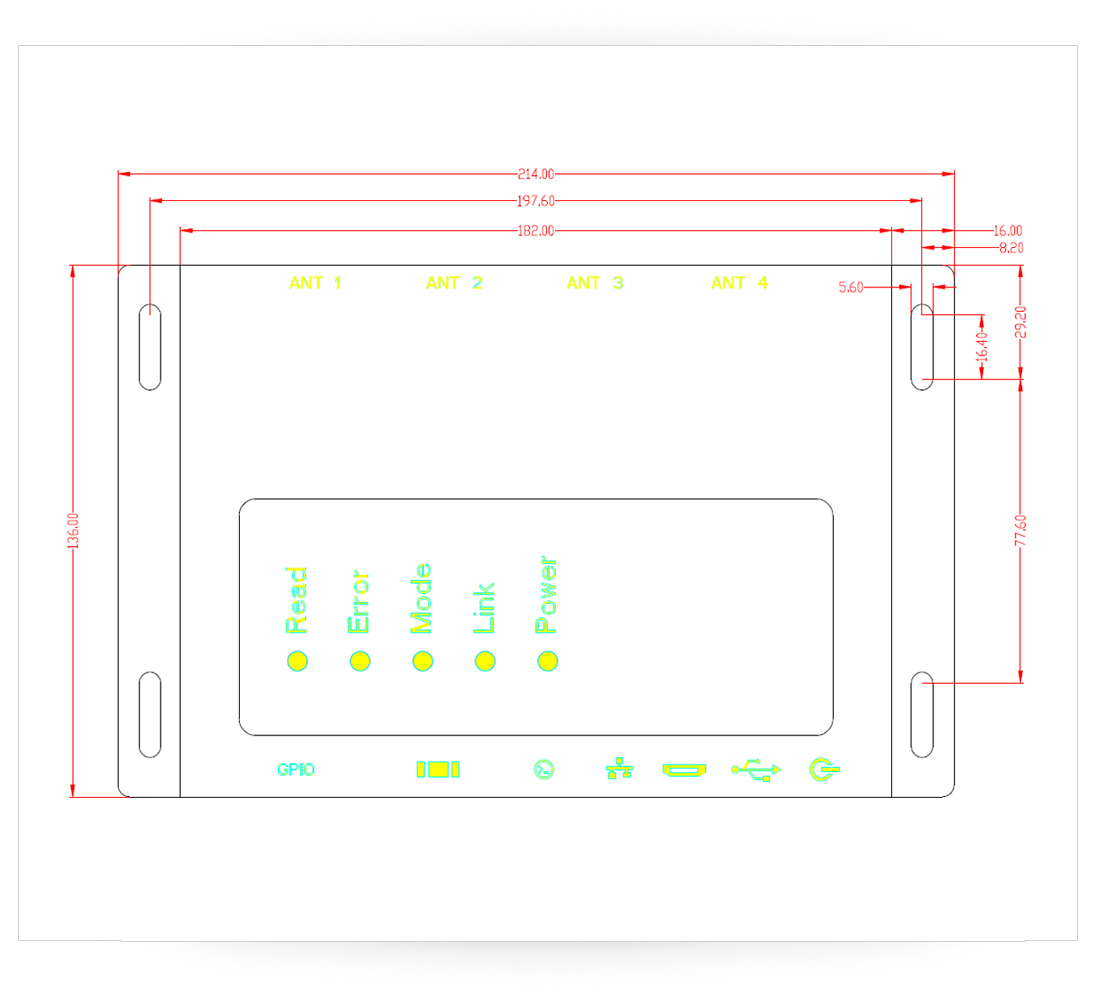

DIMENSION

-
UNIT : mm
DIMENSION
