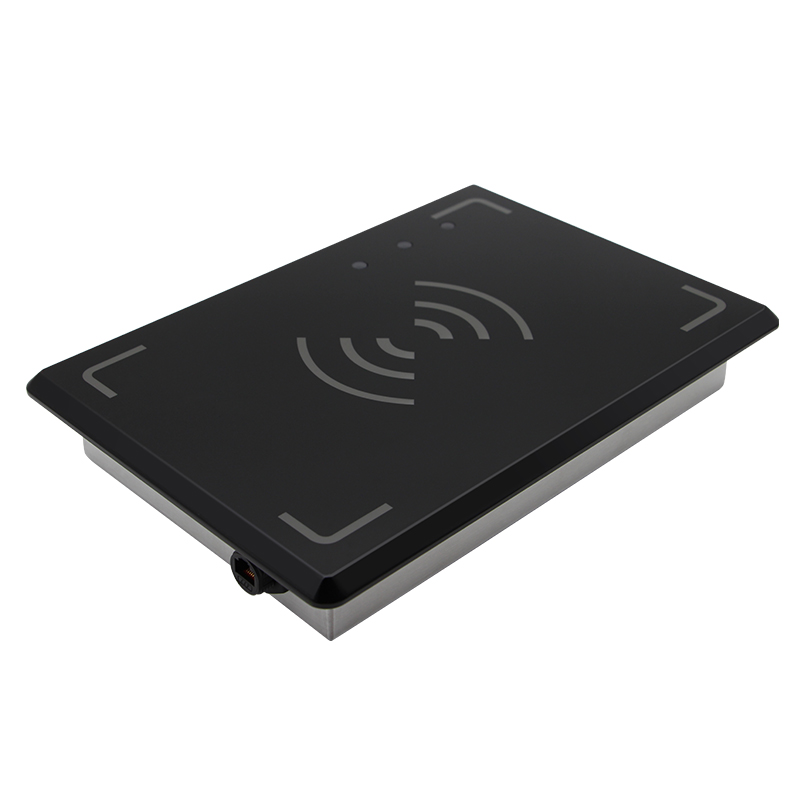

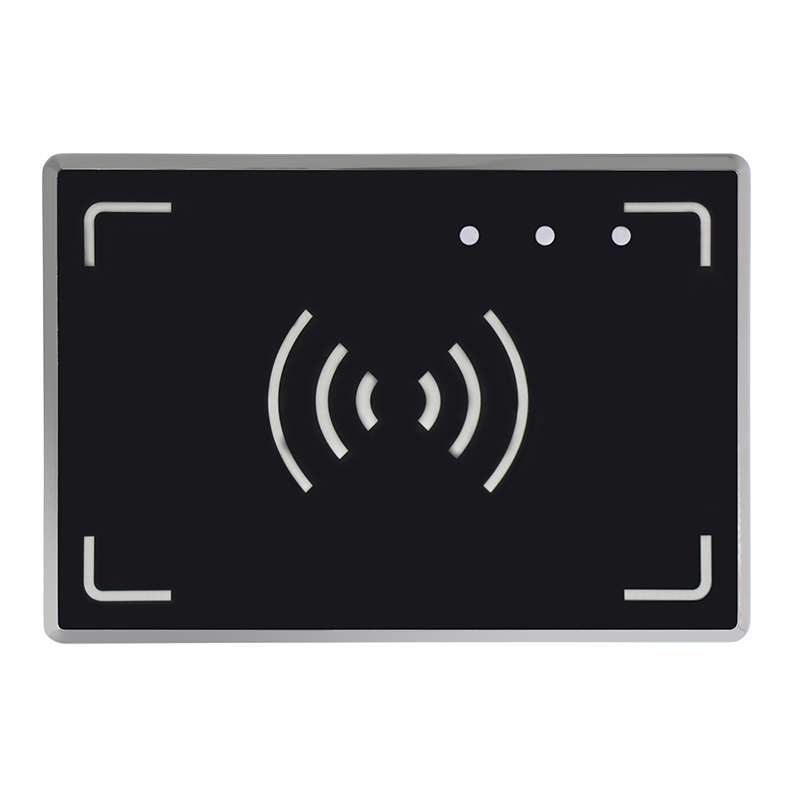

Flat UHF RFID Reader （C4200）
Comes with UHF RFID Reader Module based on Impinj’s Reader Chip
Inserted to table design, Easily for installation & Operation
Provide Ethernet & RS232 Interface. Simultaneously support Static & Dynamic IP Dividing & Cross-band Searching
Support PoE, Easily for installation
Support Command & SDK
Widely applied to Retail Store, Distributing Center and other simple RFID Detection
-
PARAMETERS
-
| Reader Chip | Impinj Indy R500 or R2000 |
|---|---|
| Interface | RJ45 |
| Antenna | Built-in 25x25mm Ceramic Antenna |
| Protocol | ISO18000‐6C/EPC GlobalC1G2 |
| Frequency Range | ETSI 865 ~ 867MHz FCC 902 ~ 928MHz CCC 920 ~925MHz, 840 ~ 845MHz NCC 922~928MHz |
| Power Output | 0dBm ~ +30dBm |
| Receiving Sensitivity | -68dBm（R500）， -83dBm（R2000） |
| LEDs Indicator | Indicator for Power, Linking & Reading |
| Modulation |
BSD_ASK/M0/40KHz；PR_ASK/M2/250KHz； PR_ASK/M2/300KHz；BSD_ASK/M0/400KHz |
| Power Input | PoE, Support 802.3af/802.3at |
| Operating Temperature | ‐20℃~+50℃ |
| Storage Temperature | ‐40℃~+70℃ |
| Operating Humility | 10%~90% |
| SDK | Microsoft .NET APIs、C/C++ API、Java |
| Dimension | 11.8” (L) x 8.27” (W) x 1.87” (H) 300mm (L) x 210mm (W) x 47.6mm (H) |

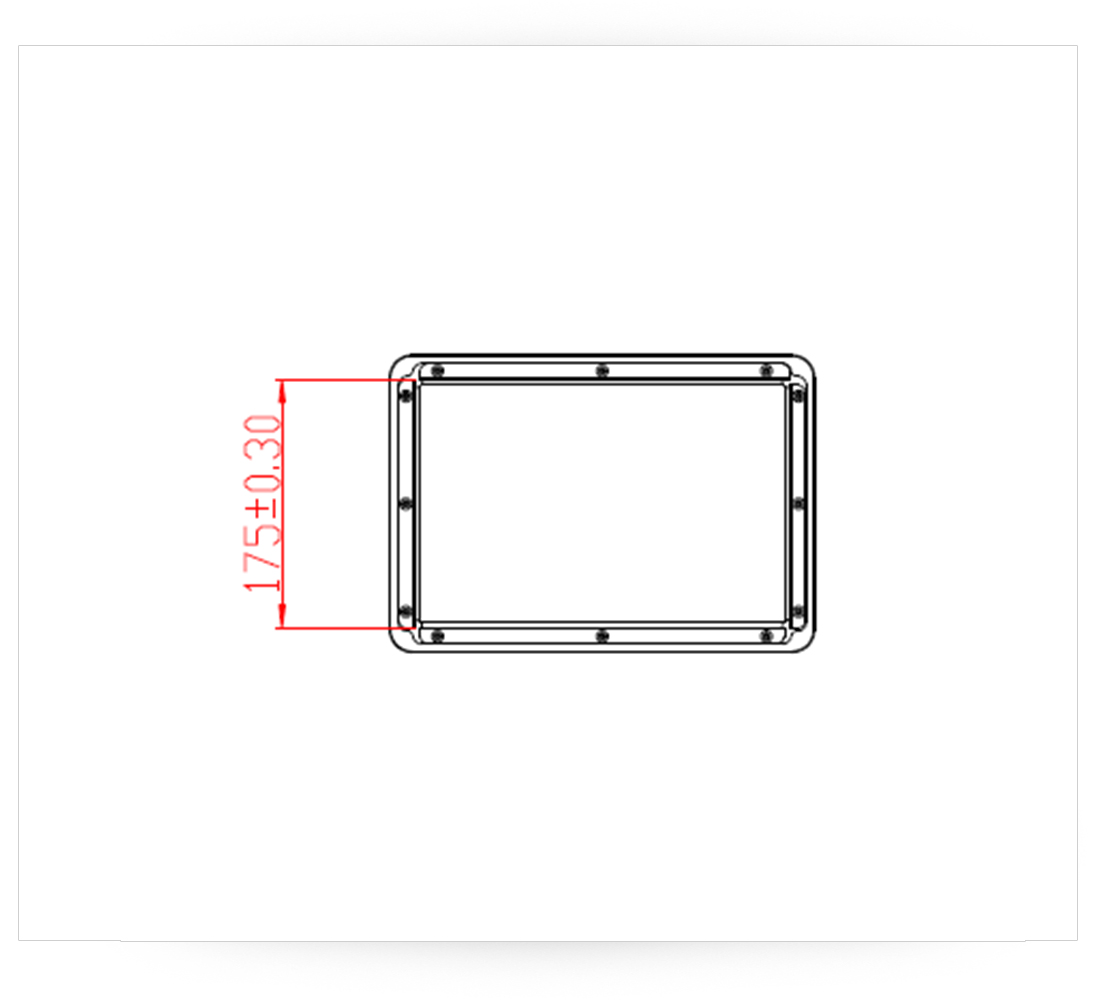

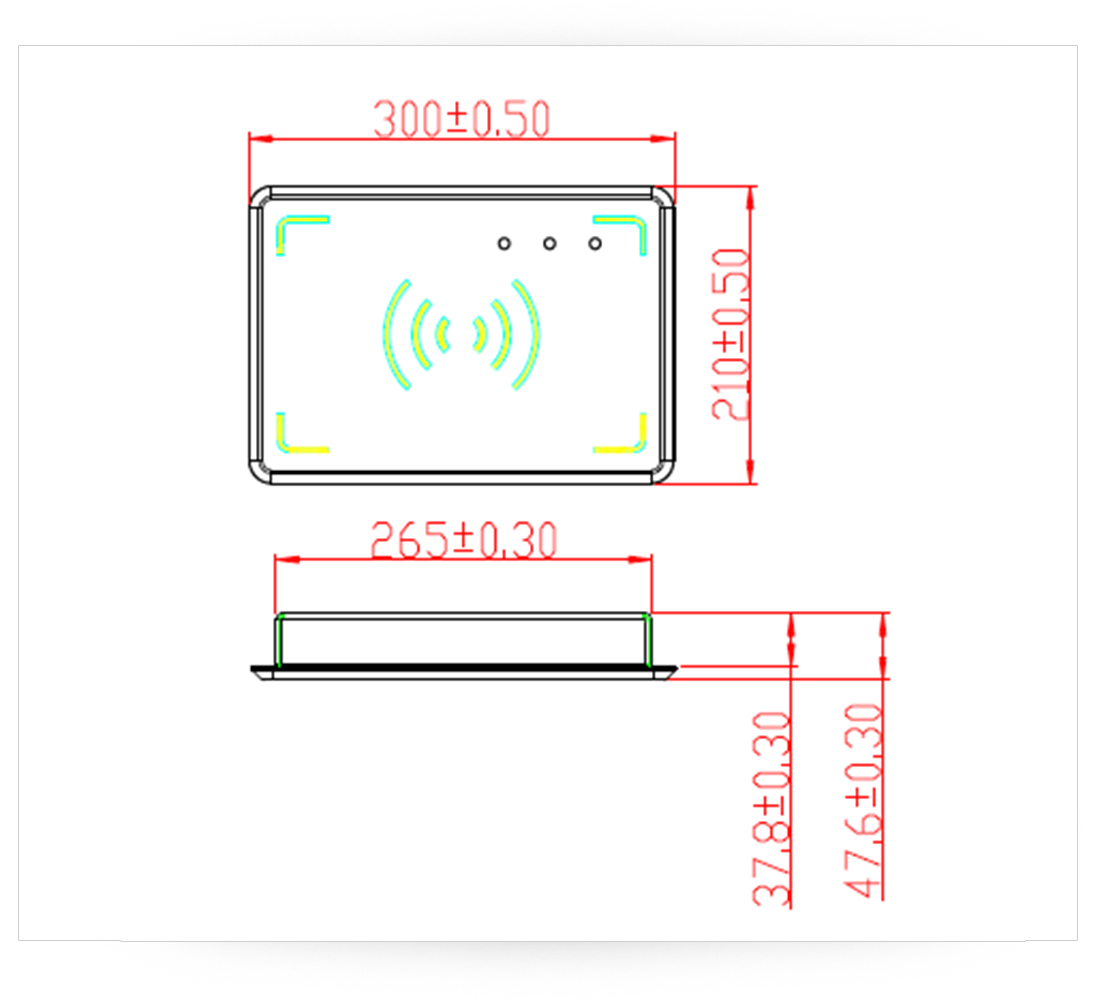

DIMENSION
-
UNIT : mm
