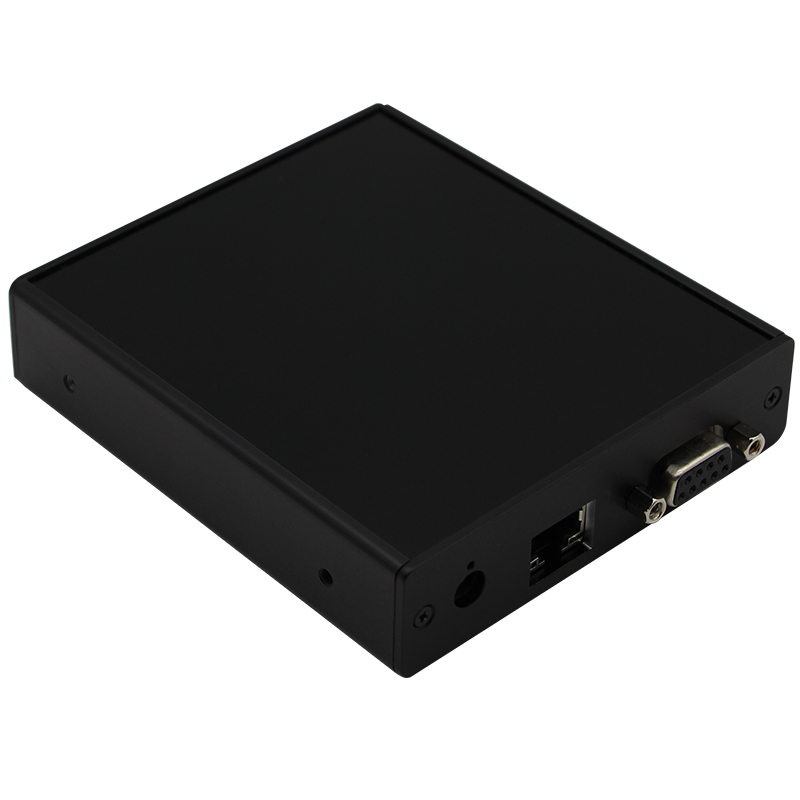

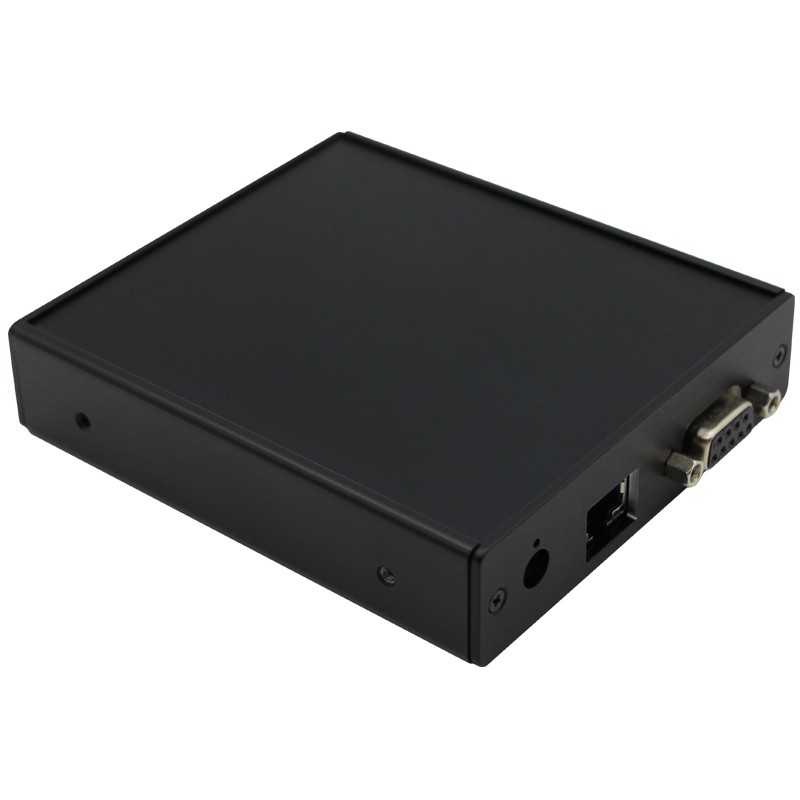

Miniature UHF RFID Reader (B5204E)
Comes with UHF RFID Reader Module based on Impinj’s Reader Chip
Aluminum Chassis for perfect thermolysis
Provide Ethernet, RS232 & GPIO Interface
Mini and exquisite appearance, support PoE, Easily for installation
Embedded high speed processor, able to be self-controlled or connected to an External PC。
Support Command via Serial port which can integrate Linux, Android or PLC by MCU
Widely applied to Intelligent Assembly Line, Distributing Center and other simple RFID Detection
-
PARAMETERS
-
| Reader Chip | Impinj Indy R500 or R2000 |
|---|---|
| Interface | RJ45 & RS-232 (includes 4-Pin GPIO) |
| Control Mode | Embedded high speed processor, able to be self-controlled or connected to an External PC |
| Number of Antenna |
Built-in (Option), External Single or 4-Antenna (SMA-Female) |
| Protocol | ISO18000‐6C/EPC Global C1G2 |
| Frequency Range |
ETSI 865 ~ 867MHz FCC 902 ~ 928MHz CCC 920 ~925MHz, 840 ~ 845MHz NCC 922~928MHz |
| Power Output | 0dBm ~ +30dBm |
| Receiving Sensitivity | -68dBm（R500）， -83dBm（R2000） |
| Modulation |
BSD_ASK/M0/40KHz；PR_ASK/M2/250KHz； PR_ASK/M2/300KHz；BSD_ASK/M0/400KHz |
| Power Input | Via Power Adapter or PoE |
| Input Voltage |
12VDC (via Power Adapter) 37V ~ 57VDC (via PoE) |
| Operating Temperature | ‐20℃~+50℃ |
| Storage Temperature | ‐40℃~+70℃ |
| Operating Humility | 10%~90% |
| SDK | Microsoft .NET APIs、C/C++ API、Java |
| Dimension | 4.68” (L) x 3.66” (W) x 0.9” (H) 119mm (L) x 93mm (W) x 23mm (H) |

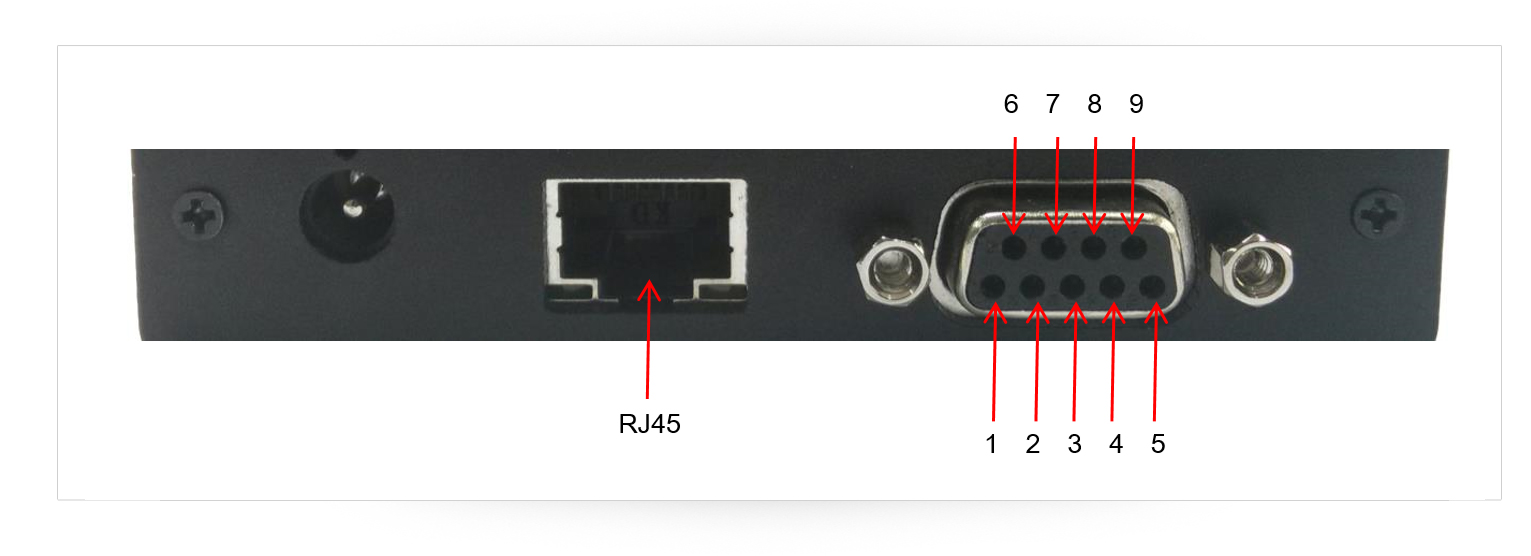

GPIO PIN ASSIGEMENT
-
| PIN NUMBER | PIN ASSIGEMENT | DESCRIPTION |
|---|---|---|
| Pin 1 | GPO 0 |
Driving Capacity: 20mA (max.) Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V |
| Pin 2 | RS232_TXD | RS232 TXD Signal |
| Pin 3 | RS232_RXD | RS232 RXD Signal |
| Pin 4 | GPO 1 |
Driving Capacity: 20mA (max.) Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V |
| Pin 5 | GND | Ground |
| Pin 6 | GPI 0 (can be defined as GPO 2) |
GPI, Low-edge Trigger, Low Active Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V
|
| Pin 7 | GPI 1 (can be defined as GPO 3) |
GPI, Low-edge Trigger Logic Low: 0 to 0.8V Logic High: 2.4V to 3.3V
|
| Pin 8 | NC | NC |
| Pin 9 | +5V | Output 5V/500mA |
| PIN NUMBER | CONNECTOR 1 (Male) D-SUB 9 |
CONNECTOR 2 (Male) D-SUB 15 |
CONNECTOR 3 (Male) D-SUB 9 |
|---|---|---|---|
| Linking | Linking to Reader | Linking to GPIO Devices | Linking to RS232 |
| Pin 1 | GPO 0 | DC 5V OUT | NC |
| Pin 2 | RS232-TX | NC | RS232-TX |
| Pin 3 | RS232-RX | NC | RS232-RX |
| Pin 4 | GPO 1 | NC | NC |
| Pin 5 | GND | NC | GND |
| Pin 6 | GPI 2 | GND | NC |
| Pin 7 | GPI 3 | NC | NC |
| Pin 8 | NC | GPO 0 | NC |
| Pin 9 | DC 5V OUT | GPO 1 | NC |
| Pin 12 | GPI 0 | ||
| Pin 13 | GPI 1 |

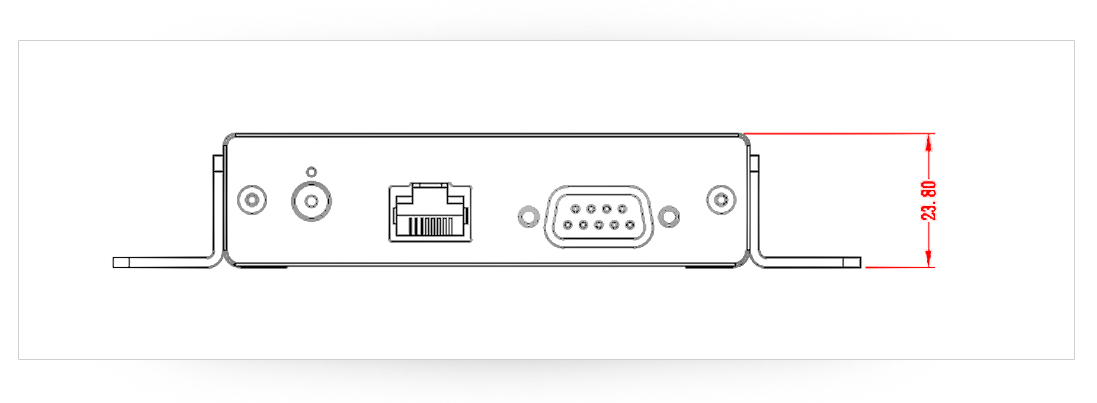

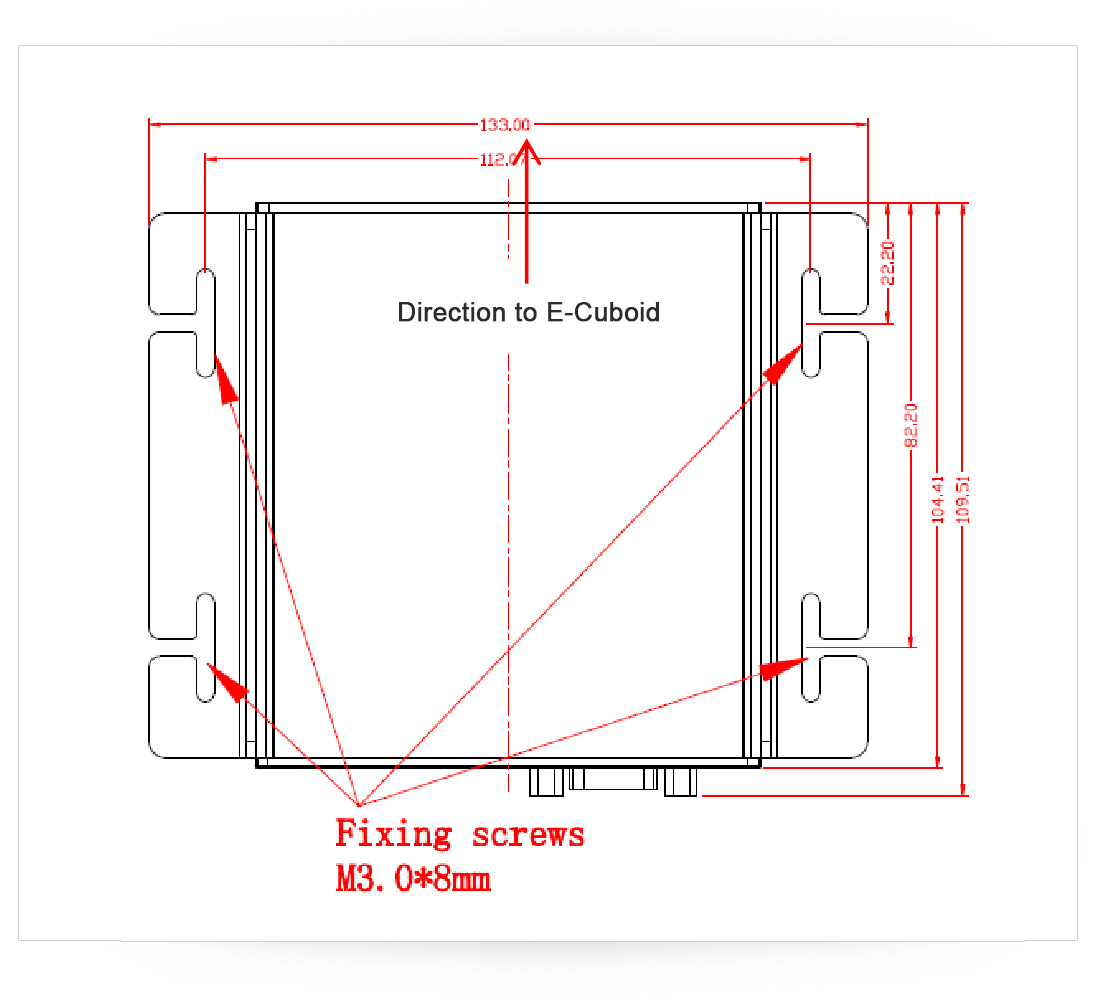

DIMENSION
-
UNIT : mm
