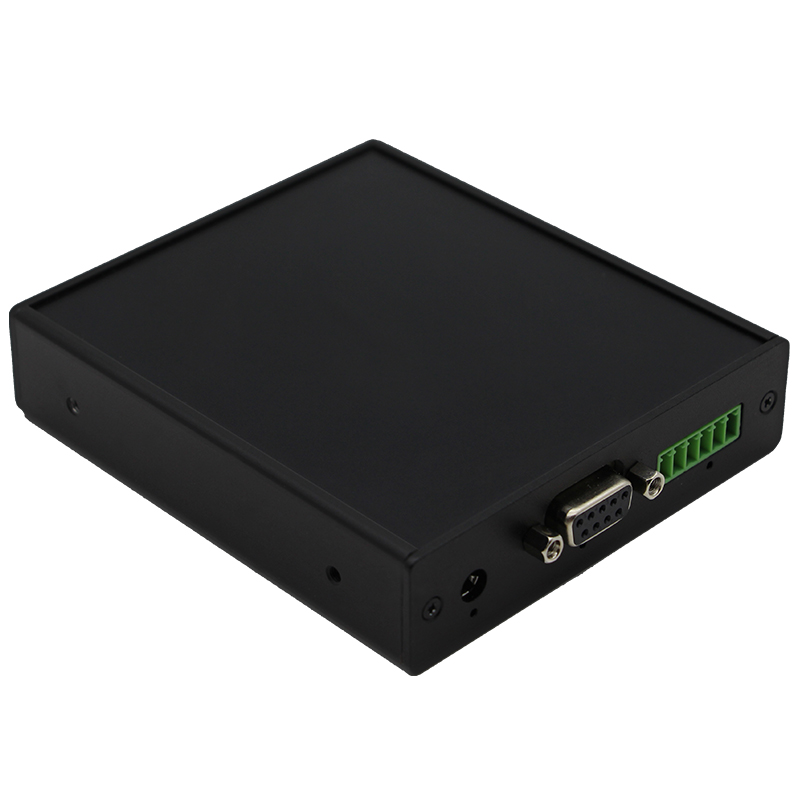

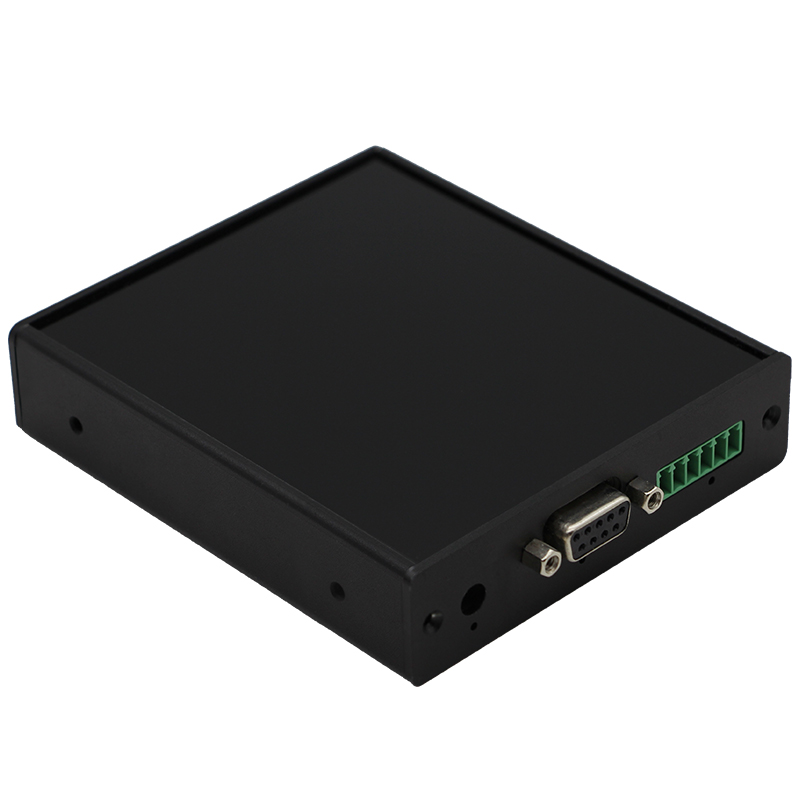

Miniature UHF RFID Reader (B5200R)

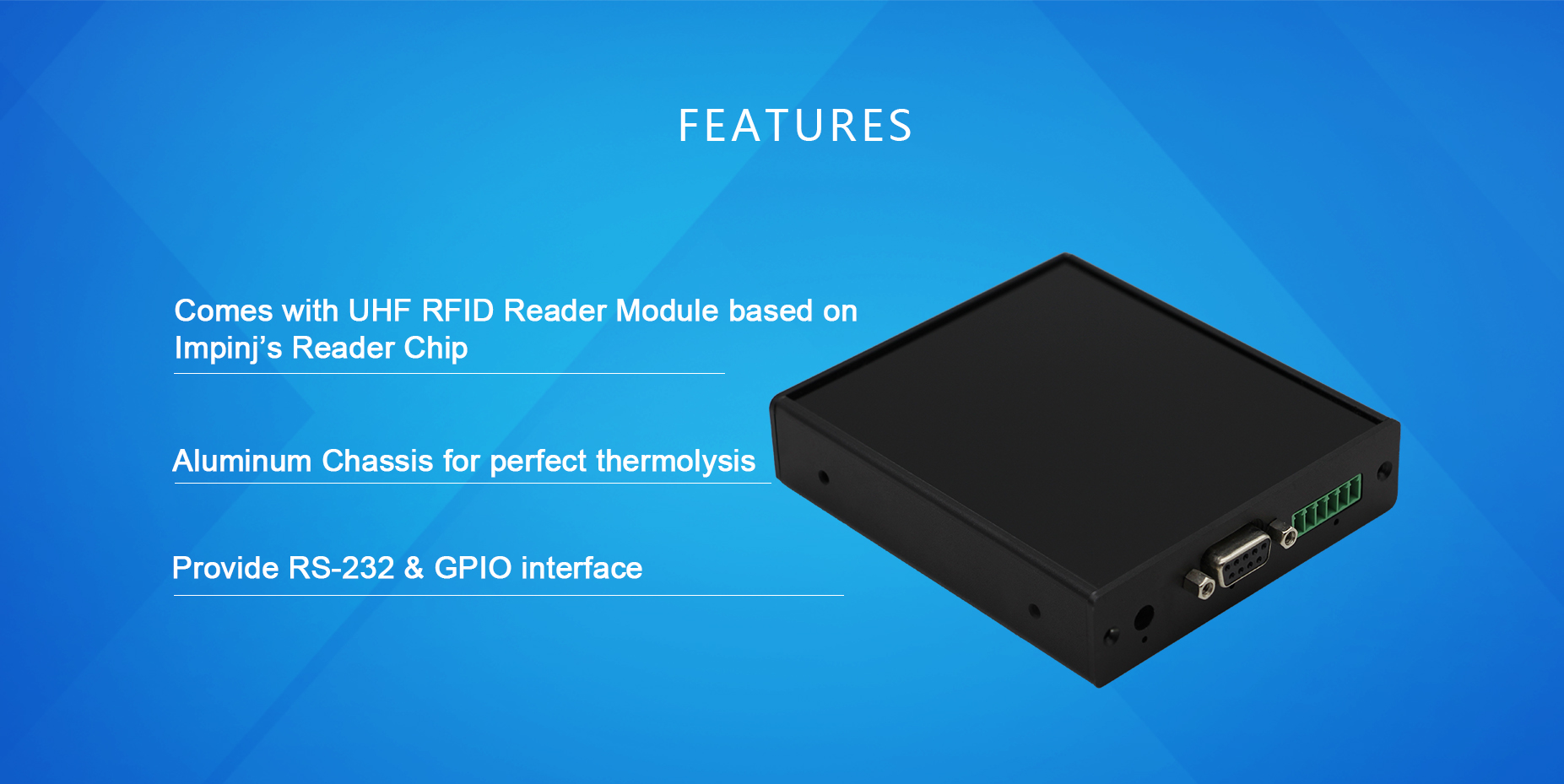

Comes with UHF RFID Reader Module based on Impinj’s Reader Chip
Aluminum Chassis for perfect thermolysis
Provide RS232 & GPIO Interface

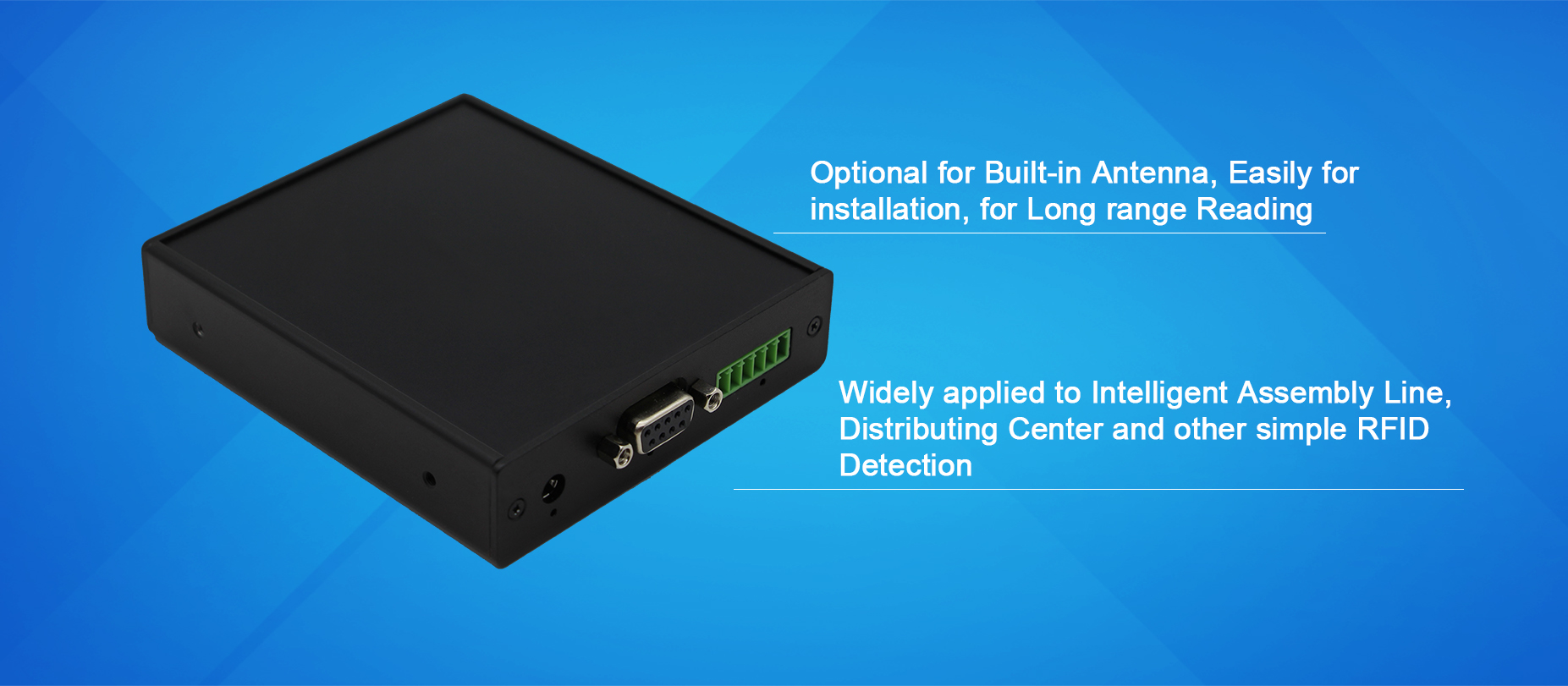

Optional for Built-in Antenna, Easily for installation, for Long range Reading
Widely applied to Intelligent Assembly Line, Distributing Center and other simple RFID Detection
-
PARAMETERS
-
| Reader Chip | Impinj Indy R500 or R2000 |
|---|---|
| Interface | RS-232 & 4 PIN GPIO |
| Number of Antenna |
Built-in Antenna External Single or 4-Antenna (SMA-Female) |
| Protocol | ISO18000‐6C/EPC Global C1G2 |
| Frequency Range |
ETSI 865 ~ 867MHz FCC 902 ~ 928MHz CCC 920 ~925MHz, 840 ~ 845MHz NCC 922~928MHz |
| Power Output | 0dBm ~ +30dBm |
| Receiving Sensitivity | -68dBm（R500）， -83dBm（R2000） |
| Modulation |
BSD_ASK/M0/40KHz；PR_ASK/M2/250KHz PR_ASK/M2/300KHz；BSD_ASK/M0/400KHz |
| Power Input | Via Power Adapter |
| Input Voltage | 5~12 VDC |
| Operating Temperature | ‐20℃~+50℃ |
| Storage Temperature | ‐40℃~+70℃ w/o cable |
| Operating Humility | 10%~90% |
| SDK | Microsoft .NET APIs、C/C++ API、Java |
| Dimension | 4.68” (L) x 3.66” (W) x 0.9” (H) 119mm (L) x 93mm (W) x 23mm (H) |

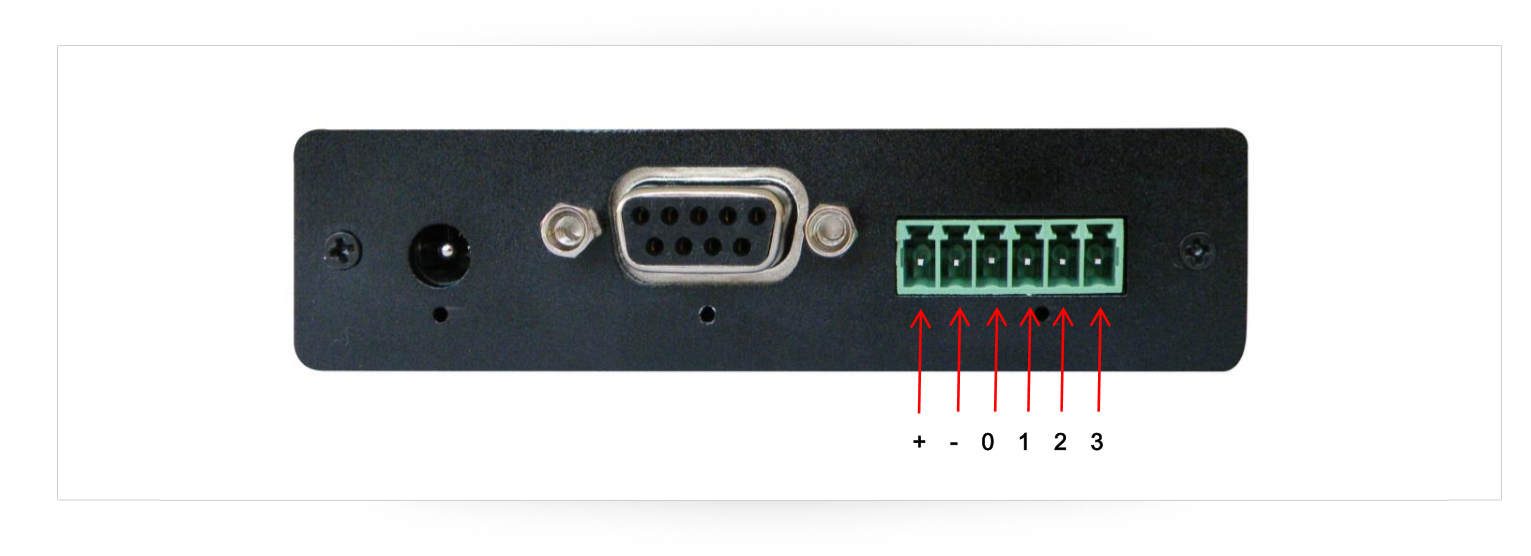

GPIO PIN ASSIGEMENT
-
| PIN NUMBER | PIN ASSIGEMENT | DESCRIPTION |
|---|---|---|
| Pin 1 | + | OUTPUT 5VDC |
| Pin 2 | - | Ground |
| Pin 3 | GPO 0 |
General Purpose Output Signal, edge trigger, low active Driving capacity: 20mA max Logic Low: 0 to 0.8V Logic High: 2.4 to 3.3V |
| Pin 4 | GPO 1 |
General Purpose Output Signal, edge trigger, low active Driving capacity: 20mA max Logic Low: 0 to 0.8V Logic High: 2.4 to 3.3V |
| Pin 5 | GPI 2 |
General Purpose Input Signal, edge trigger, low active Logic Low: 0 to 0.8V Logic High: 2.4 to 3.3V |
| Pin 6 | GPI 3 |
General Purpose Input Signal, edge trigger, low active Logic Low: 0 to 0.8V Logic High: 2.4 to 3.3V |

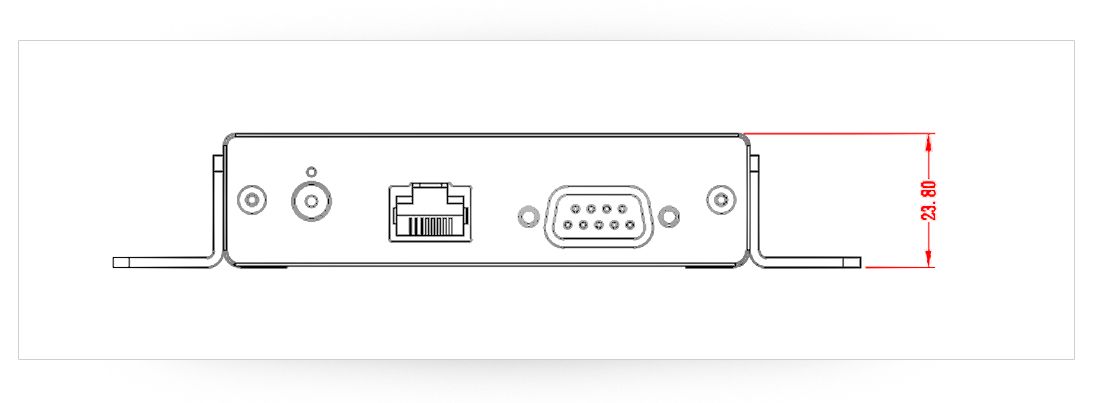

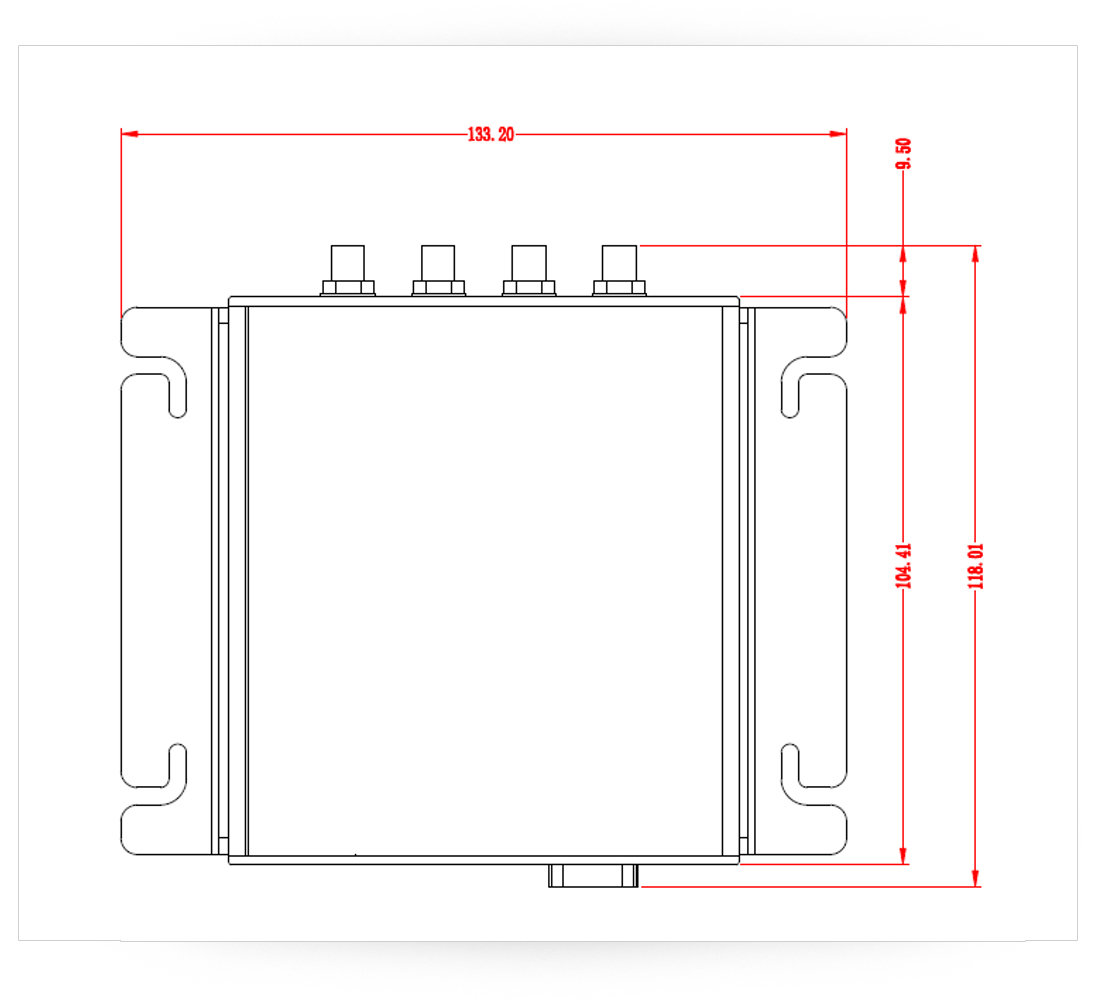

DIMENSION
-
UNIT : mm
