  • Micro UHF RFID Reader (B2011L)
  • Micro UHF RFID Reader (B2011L)
Micro UHF RFID Reader (B2011L) Micro UHF RFID Reader (B2011L)

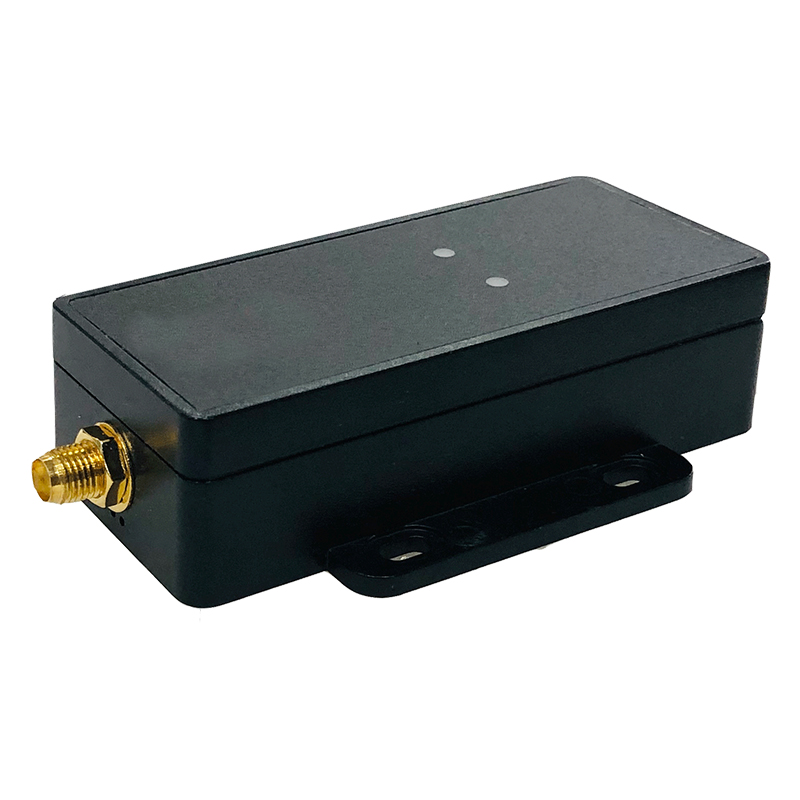

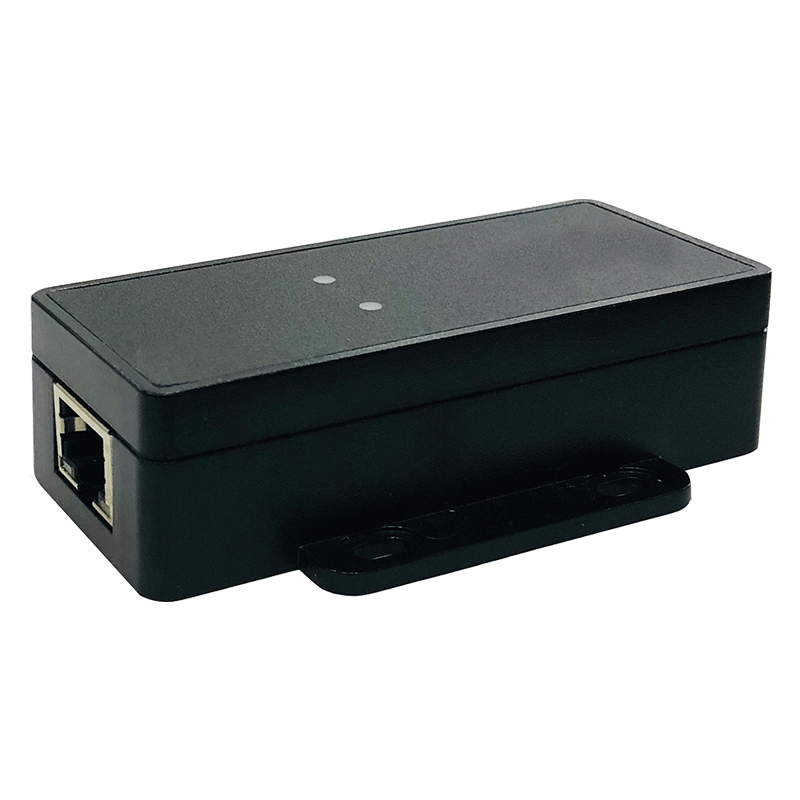

    Micro UHF RFID Reader (B2011L)
    Micro UHF RFID Reader (B2011L)

Micro UHF RFID Reader (B2011L)

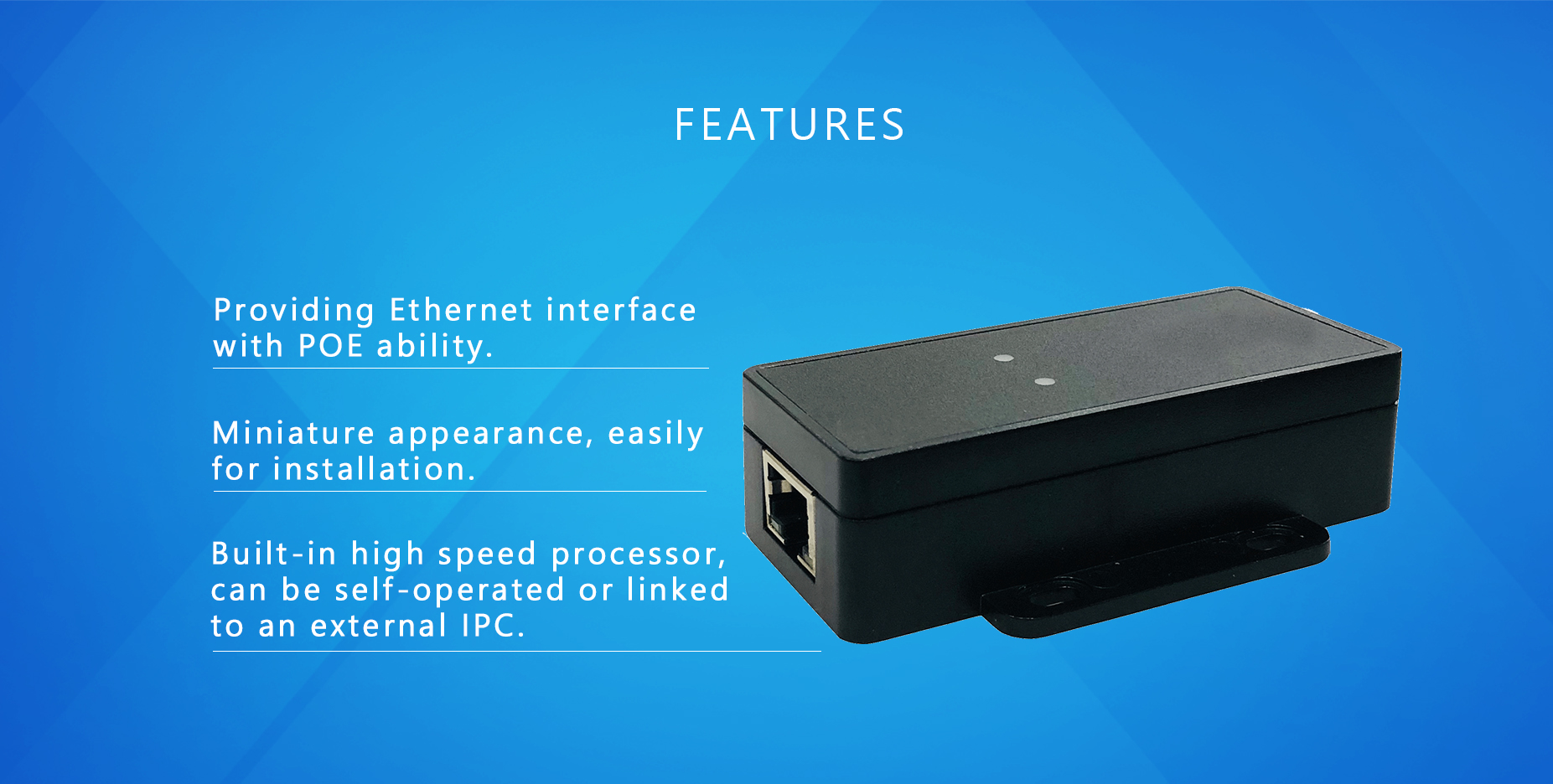

Providing Ethernet interface with POE ability.
Miniature appearance, easily for installation.
Built-in high speed processor, can be self-operated or linked to an external IPC.

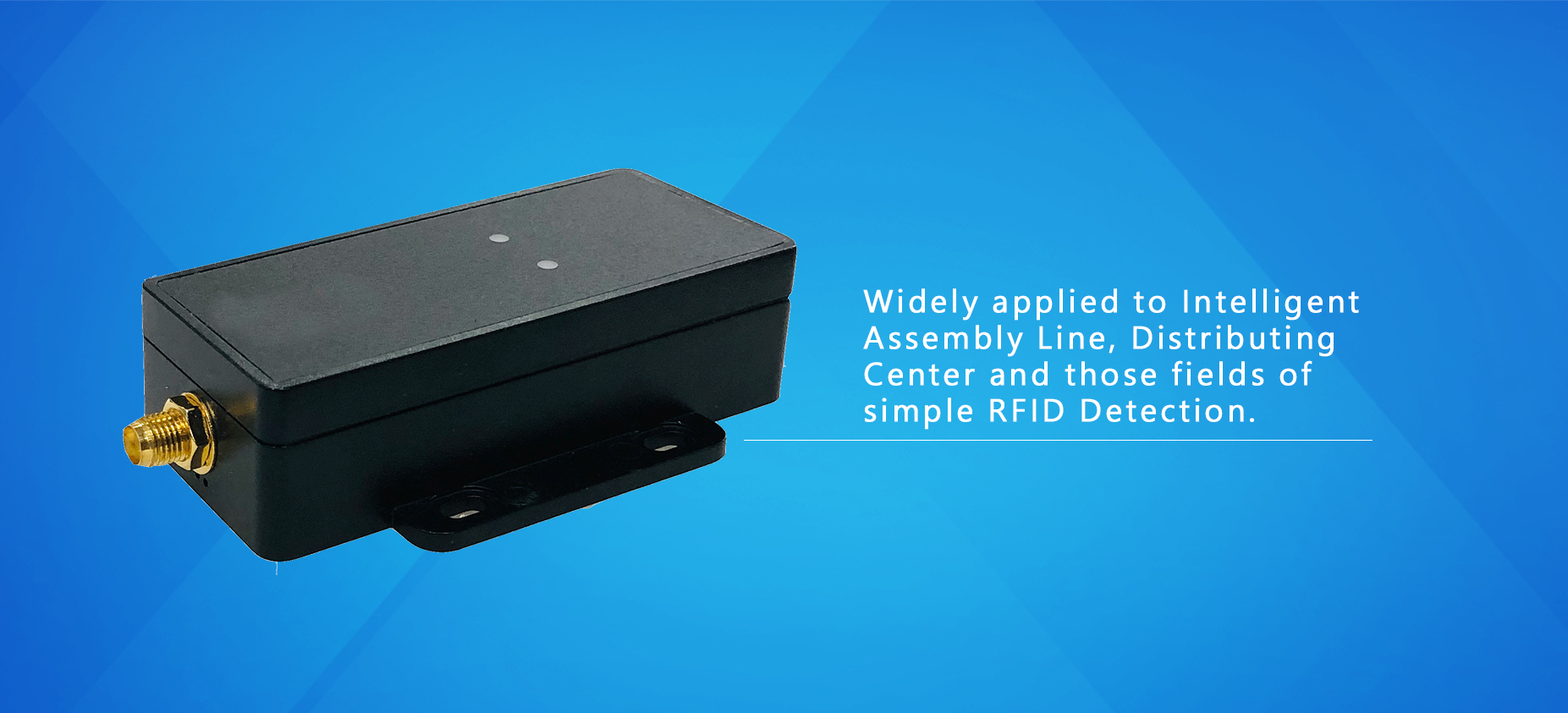

Widely applied to Intelligent Assembly Line, Distributing Center and those fields of simple RFID Detection.
Features
Basic Parameters
Dimension
-
b2011l b2011l

Basic parameters

-
Read/Write Chip Low power consumption RFID Module M1011
Interface RJ45
Antenna External Single Antenna，SMA（Female）
Indicators LED x 2（Red & Yellow）
Buzzer Built-in
Protocol ISO18000‐6C/EPCGlobalC1G2
Frequency Range ETSI，865~867MHz
FCC，902~928MHz
CCC，920~925MHz
NCC，922~928MHz
Output Power 0dBm ~ +24dBm
Receiving Sensitivity -53dBm
Power Input via POE（802.3 AT/AF）
Operating Temperature ‐20℃~+50℃
Storage Temperature ‐40℃~+70℃
Operating Humility 10%~90%
SDK Software Microsoft .NETAPIs、Java
Dimension 80（L）x 24（W）x 22（H）mm

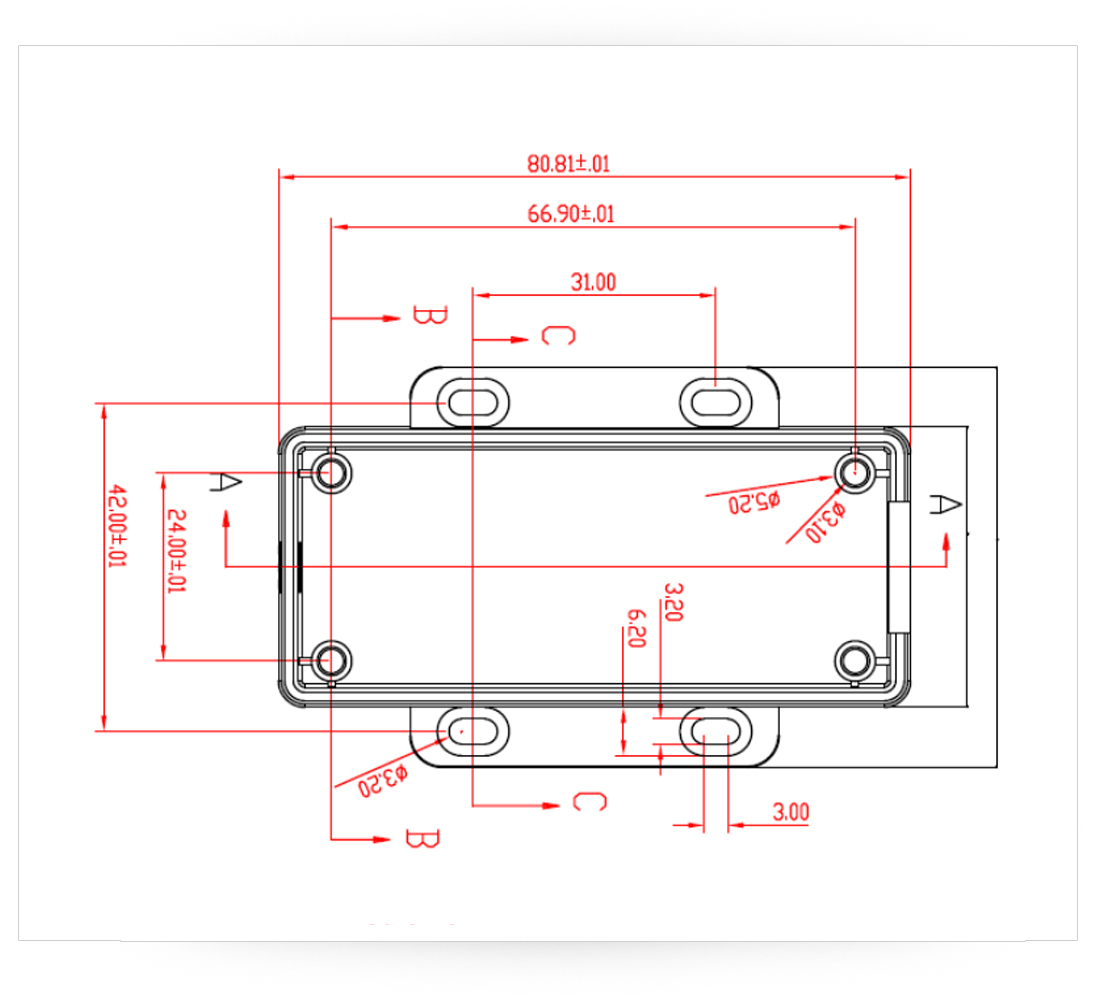

Dimensions

-
Unit：mm
Dimensions
